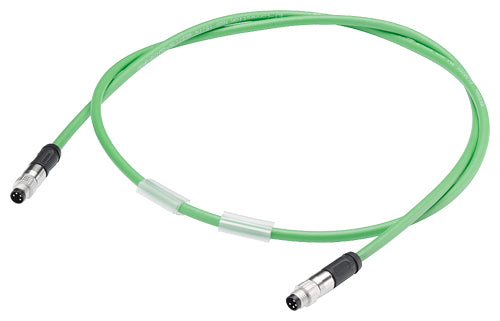

Siemens Bus cable, male 4-way M8 to male 4-way M8, 10m Part number 6ES7194-2LN10-0AA0

Product Overview

The Siemens bus cable (SKU: 6ES7194-2LN10-0AA0) is a pre-assembled 4-core shielded cable with 2 × M8 4-pole connectors. It is designed for connecting ET-CONNECTION nodes such as SIMATIC ET 200AL and is suitable for industrial environments with protection class IP65/67.

Key Features

• Pre-assembled bus cable with two M8 4-pole connectors
• Shielded cable design for reliable signal transmission
• Length: 10 m for flexible installation
• Protection class IP65/67 for demanding environments
• One million bending cycles capability when used in cable carriers
• Rating suitable for ET-connection modules and field wiring

Technical Specifications

• Product Series: SIMATIC bus cable
• Article Number: 6ES7194-2LN10-0AA0
• Cable Length: 10 m
• Number of Cores: 4
• Cable Designation: 2Y(ST)CY 1×4×0.5/1.0-100-GN
• Outer Cable Sheath Diameter: ~5 mm
• Permissible Bending Radius (single bend): ≥ 20 mm
• Permissible Bending Radius (multiple bends): ≥ 40 mm
• Cable Carrier Bending Radius: 100 mm, capable of 1,000,000 cycles at 4 m/s and 4 m/s²
• Ambient Temperature (assembly): –30 °C to +80 °C
• Ambient Temperature (storage): –40 °C to +80 °C
• Protection Class: IP65/67
• Weight per Length: 34 kg/km
• Connector Outlet Type: 180° cable outlet
• Insulation Material: Core insulation PE, outer sheath PVC
• Shield Design: Aluminum-clad foil plus braid of tin plated copper wires

Compliance & Certifications

• Protection class IP65/67 per IEC 60529
• Designed for industrial bus connection applications
• Halogen-free: No; Silicone-free: Yes

Applications

Ideal for connecting ET-CONNECTION nodes and distributed I/O modules in industrial automation systems. It is suited for field wiring and cable carrier installations where robust, shielded M8 connector cables are needed for reliable signal connectivity in harsh environments.
