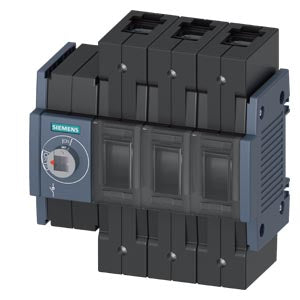

Siemens Switch disconnector, front operating mech left, size 2, 3-pole, 100A
View on Siemens 📄 Datasheet
Siemens

Siemens Switch disconnector, front operating mech left, size 2, 3-pole, 100A Part number 3KD3030-2NE10-0

EAN / Barcode 4001869472140
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Switch disconnector 100 A

The 100 A switch disconnector serves as a high-performance main, EMERGENCY-OFF, or repair switch, ensuring reliable operator protection and high system availability.

Technical details:

  • Size 2
  • 3-pole
  • Front operating mechanism left
  • Basic unit without handle
  • Box terminal
  • Switch disconnector up to 1600 A
  • Versions for DC applications available

Customer benefits:

  • Reliable operator protection
  • High system availability in industry, infrastructure, and buildings
  • Versatile usage, suitable for wind and solar power plants
  • Different versions with variable connection and drive types
  • End-to-end safety for users and systems

Technical Specifications

Degree of protection (IP), front sideIP20
Depth68 mm
Device constructionBuilt-in device fixed built-in technique
Height126 mm
Max. rated operation voltage Ue AC1000 V
Number of auxiliary contacts as change-over contact4
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V55 kW
Rated permanent current at AC-21, 400 V100 A
Rated permanent current at AC-23, 400 V100 A
Rated permanent current Iu100 A
Rated short-time withstand current lcw4 kA
Suitable for floor mountingYes
Switching power at 400 V55 kW
Type of control elementOther
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width121 mm
Width in number of modular spacings3
View complete specifications on Siemens
