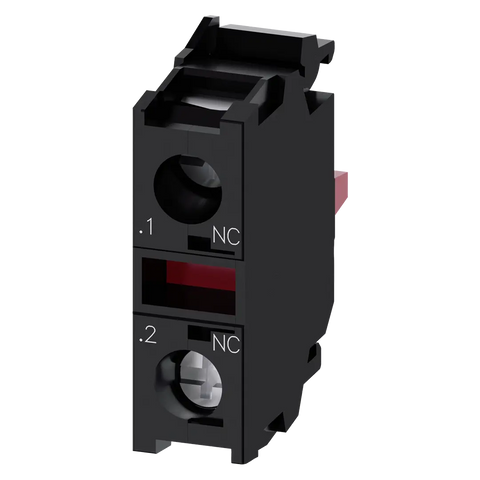

Siemens Contact module with 1NC, screw-type

SKU / Article No. 3SU1400-1AA10-1CA0

Product Type Control Panel

Product Class Auxiliary contact block

Category Push Buttons and Switches

Sub-category Contact Block

R 134.10

In Stock

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

Contact module with 1 contact element, 1 NC, screw terminal, for front plate mounting from the SIRIUS ACT series. This contact block is designed to control the flow of electricity through switches and is suitable for switching power circuits.

Key Features

1 Normally Closed (NC) contact element
Screw terminal connection type
Front plate mounting configuration
Innovative snap-on concept for easy installation with one hand and without special tools
Constructed from highly durable wear-resistant plastic material

Technical Specifications

Voltage Rating: 5V to 500 VAC/DC
Current Rating: 10A at 24V AC/DC

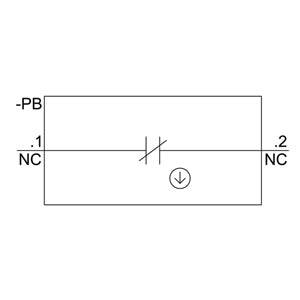

Contact Configuration: 1 Normally Closed contact
Number of Poles: 1 Pole
Net Weight: 0.008 kg
Packaging Dimensions: 27.00 x 33.00 x 10.00 mm
Country of Origin: Germany
EAN: 4011209950887
UPC: 804766073274

Compliance & Standards

RoHS compliant since 01.10.2014
WEEE (2012/19/EU) Take-Back Obligation: Yes
Export Control Regulations: AL: N / ECCN: N

Applications This contact module is well-suited for heavy-duty industrial applications and is commonly used in electrical and automation applications. Suitable for demanding environments due to its durable construction and vibration resistance.

Mounting & Installation

Front plate mounting with contact holders
One-hand installation capability
No special tools required for installation

Product Classification

eClass: 27-37-13-02
ETIM: EC000041
UNSPSC: 39-12-22-21

Download existing graphical data for this product:

Technical Specifications

IP Rating	IP40 (of enclosure) / IP20 (of terminal)
Country of Origin	Germany
Temperature: Operating	-25°C to 70°C

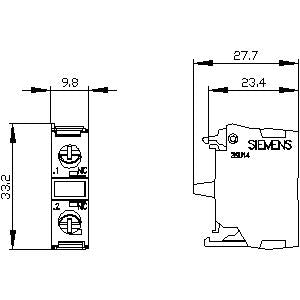

Part Depth (mm)	27.7mm
Part Width (mm)	9.8mm
Part Height (mm)	33.2mm
Tightening Torque	0.8 - 0.9 N·m
Material: Product	Silver Alloy (contacts)
Connection Style	1 NC
Max Frequency	3600 1/h
Type of Voltage	AC/DC
Operating Voltage	5 / 500 V
Current Rating / Rated Current	0.1 - 10 A
Operating Period	10 000 000 cycles (Mechanical) / 10 000 000 cycles (Electrical)
