Description

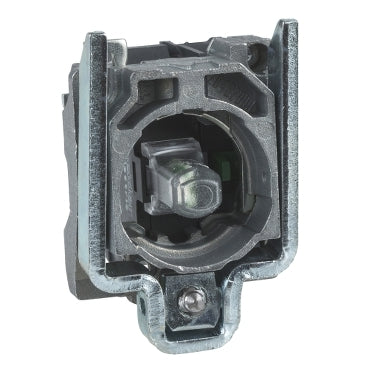

xThis Harmony XB4 green LED light block is designed for industrial signaling applications. It includes a 24 V integral LED and 1 NO contact, compatible with screw terminals. The unit operates between -40°C and 70°C, making it reliable for harsh environments.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / DNV / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / GL / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 0.064g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 0.8 - 1.2 Nm |
| Material: Product | Silver Alloy (contacts) |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Style | 1 NO / (13-14)NO |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 24 V (AC/DC) |
| Current Rating / Rated Current | 3 A at 240 V / 0.1 A at 600 V / 1 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V |
| Current Consumption | 18 mA |
| Operating Period | 5000000 cycles (Mechanical) / 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C /1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
