Description

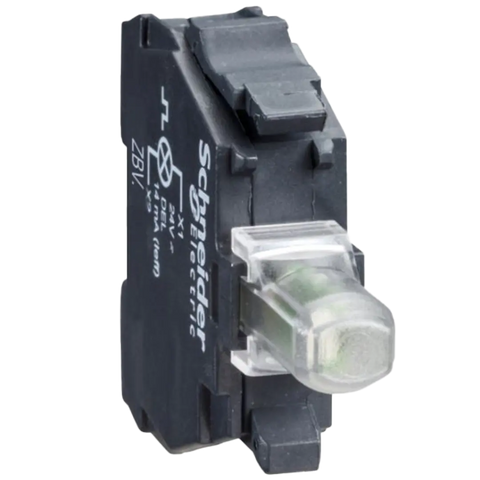

xThis white LED light block is compatible with Harmony XB4/XB5 push buttons, featuring screw clamp terminals and a steady light signal. It operates on 24 V AC/DC, providing a long service life of 100,000 hours.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA / CSA C22.2 No 14 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL / UL 508 / UL Listed |
| Temperature: Operating | -40°C to 70°C |
| Weight (g) | 17g |
| Tightening Torque | 0.8…1.2 Nm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Supply Voltage | 19.2 to 30 VDC / 21.6 yo 26.4 VAC |
| Mounting Type | Front mounting |
| Current Consumption | 15 mA |
| Operating Period | Service Life 100000 h at rated voltage and 25 °C |
| Warranty | 18 Months |
| Colour | White |
