Description

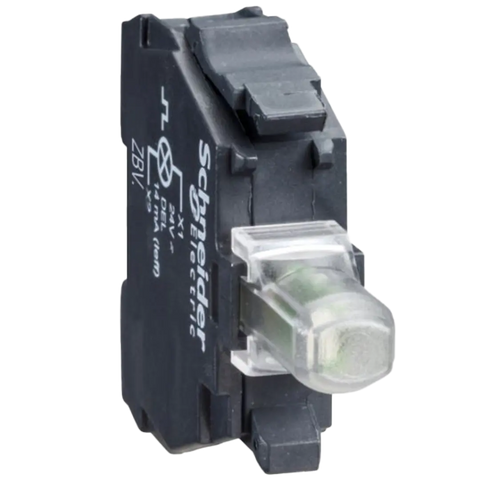

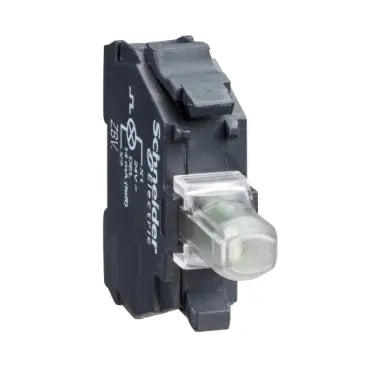

xThis red LED light block for Harmony XB4/XB5 series is designed for 22 mm heads. It offers a steady light signal and operates on 24 V AC/DC. It is intended for front mounting and has been discontinued.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA / CSA C22.2 No 14 / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Weight (g) | 17g |
| Tightening Torque | 0.8 - 1.2 Nm |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 19.2 to 30 VDC / 21.6 yo 26.4 VAC |
| Current Consumption | 18 mA |
| Operating Period | Mechanical Durability 10000000 cycles / Service Life 100000 h at rated voltage and 25 °C |
| Warranty | 18 Months |
| Colour | Red |
