Schneider Contact block with mounting collar, 2NC
Schneider Contact block with mounting collar, 2NC

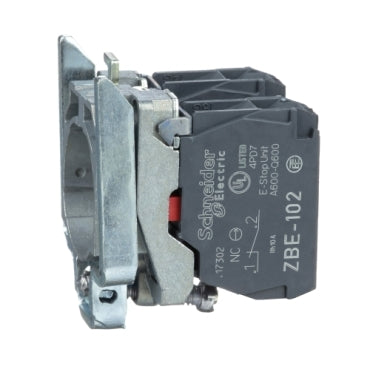

Schneider Contact block with mounting collar, 2NC Part number ZB4BZ104

This Harmony XB4 contact block features 2 NC contacts with slow-break operation and a Zamak fixing collar. With a mechanical durability of 5 million cycles, it ensures reliable performance in control circuits, especially for heavy-duty applications.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This Harmony XB4 contact block features 2 NC contacts with slow-break operation and a Zamak fixing collar. With a mechanical durability of 5 million cycles, it ensures reliable performance in control circuits, especially for heavy-duty applications.
Specifications
Specifications
x
IP Rating / DetailedIP20 conforming to IEC 60529
Compliance/CertificationsCSA C22.2 No 14 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL 508
Temperature: Operating-40°C to 70°C
Part Depth (mm)37mm
Part Width (mm)30mm
Part Height (mm)47mm
Weight (g)62g
Tightening Torque0.8 - 1.2 Nm
Material: ProductSilver Alloy (Contacts)
Screw TypeCross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Connection Style2 NC / (11-12)NC
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Current Rating / Rated Current3 A at 240 V / 6 A at 120 V / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V
Operating Period5000000 cycles (Mechanical)
Warranty18 Months
Documents
Documents
x
Download Datasheet
