Description

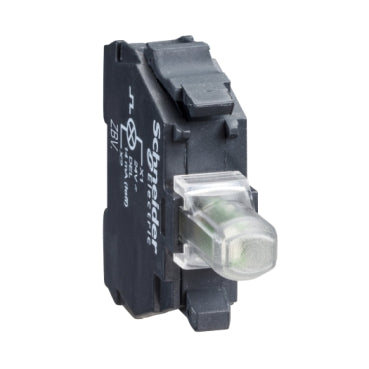

xThis blue LED light block for Harmony XB4 and XB5 operates at 24V AC/DC, providing clear signaling for control units with reliable illumination.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA C22.2 No 14 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70 °C |
| Weight (g) | 17g |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 24 VAC/DC at 50/60 Hz |
| Current Consumption | 18 mA |
| Warranty | 18 Months |
| Colour | Blue |
