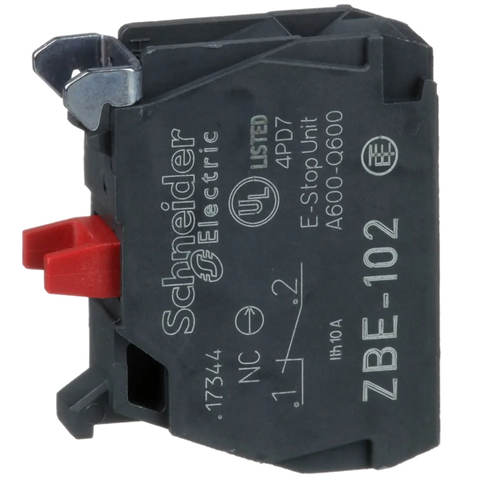

Schneider Single contact block, silver alloy, screw, 1NC Part number ZBE102

This contact block from the Harmony XB4 series features 1 NC contact with a silver alloy material. It is designed for front mounting and provides a mechanical durability of up to 10 million cycles, suitable for industrial control applications.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This contact block from the Harmony XB4 series features 1 NC contact with a silver alloy material. It is designed for front mounting and provides a mechanical durability of up to 10 million cycles, suitable for industrial control applications.
Specifications
Specifications
x
IP RatingIP20 conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsBV / CCC / CSA / DNV / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / GOST / GL / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL / UL 508
Temperature: Operating-40°C to 70°C
Weight (g)11g
Packaging size / unit1 pc(s)
Tightening Torque0.8 - 1.2 Nm
Material: ProductSilver Alloy (contacts)
Screw TypeCross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Connection Style1 NC
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
Mounting TypeFront mounting
Current Rating / Rated Current3 A at 240 V / 6 A at 120 V / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V
Operating Period10000000 cycles (Mechanical) / 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C /\n1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to EN/IEC 60947-5-1 appendix C(Electrical)
Warranty18 Months
