Description

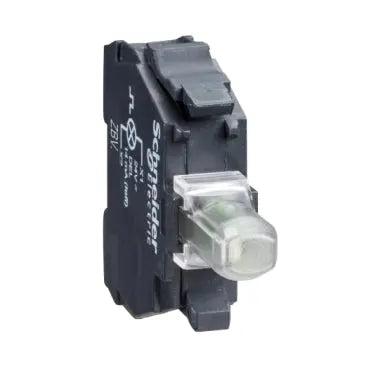

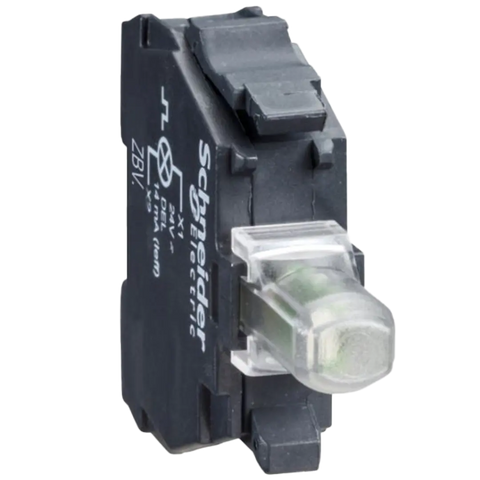

xThis red LED light block, compatible with Harmony XB4, operates at 230-240V AC, providing high-visibility indication for industrial control systems.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA C22.2 No 14 / EN/IEC 60947-1 / EN/IEC 60947-5-1 / EN/IEC 60947-5-4 / EN/IEC 60947-5-5 / JIS C8201-1 UL listed / JIS C8201-5-1 / UL 508 |
| Temperature: Operating | -40°C to 70 °C |
| Weight (g) | 17g |
| Packaging size / unit | 1 / 5 / 800 pc(s) |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 230 to 240 VAC at 50/60 Hz |
| Mounting Type | Front Mounting |
| Current Consumption | 14 mA |
| Warranty | 18 Months |
| Colour | Red |
