Description

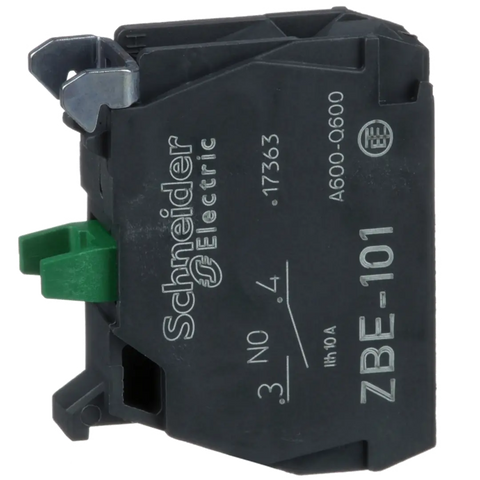

xThis Harmony XB5 single contact block is designed for industrial control applications. It features screw clamp terminals and a slow-break contact, rated for up to 10 A at 600 V. The unit provides high durability with 10 million mechanical cycles.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CCC / CSA / CSA C22.2 No 14 / DNV / GL / GOST / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL / UL 508 |
| Temperature: Operating | -40°C to 70°C |
| Weight (g) | 11g |
| Tightening Torque | 0.8 - 1.2 Nm |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Mounting Type | Front mounting |
| Current Rating / Rated Current | 3 A at 240 V / 6 A at 120 V / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V |
| Operating Period | Mechanical Durability 10000000 cycles |
| Warranty | 18 Months |
