Product Overview

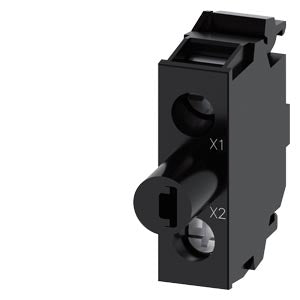

LED module with integrated LED 230 V AC, red, screw terminal, for floor mounting

Article Number: 3SU1401-2BF20-1AA0

Key Features:

• Voltage Rating: 230V AC
• LED Color: Red
• Connection Type: Screw terminal for secure installation
• Mounting: Floor mounting design for base applications
• Series: SIRIUS ACT
• Application: For illuminating SIRIUS ACT command and signaling devices in floor-mounted configurations

Technical Specifications:

• Operating Voltage: 230V AC (50/60 Hz)
• Forward Current: 20 mA
• Protection Rating: IP20, IP40
• Net Weight: 0.010 kg
• Packaging Dimensions: 57.00 x 102.00 x 20.00 mm
• Quantity Unit: 1 Piece
• EAN: 4011209943940
• UPC: 804766074325
• Country of Origin: Czech Republic

Product Benefits:

• Floor Mounting Design: Specifically engineered for base-mounted applications and floor-level installations
• High-Voltage Operation: 230V AC operation for direct connection to standard industrial power systems without transformers
• High-Visibility Red LED: Provides clear visual indication with excellent visibility for alarm, stop, danger, and emergency status signals
• Energy-Efficient LED Technology: Delivers brilliant luminosity even with higher voltage operation
• Integrated Design: LED module with built-in LED eliminates need for separate lamp components
• Robust Construction: Designed for industrial environments with high protection against dust, oils, and caustic solutions
• Secure Connection: Screw terminal provides reliable electrical connection for critical high-voltage applications
• Direct Line Connection: No need for external transformers or voltage converters in 230V AC systems
• Safety Indication: Red LED universally recognized for danger, alarm, stop, and emergency signals
• Reliable Performance: Engineered for long service life in demanding floor-mounted installations

Applications: Perfect for floor-mounted SIRIUS ACT pushbuttons and indicator lights in industrial control systems, emergency stop systems, machinery interfaces, and automation systems where ground-level visual indication and control are required with direct 230V AC power connection. Ideal for applications requiring red status indication for alarms, danger signals, emergency stops, fault conditions, and critical system alerts in manufacturing and process control environments where 230V AC power is readily available.

Compliance & Certifications:

• RoHS Compliant: Since 01.10.2014
• WEEE Directive: Take-back obligation applies
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item

REACH Regulation Notice: This product contains substances from the candidate list in concentrations higher than 0.1% w/w:

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended. Please refer to product documentation for complete details.

Download existing graphical data for this product:

• System Manual - SIRIUS ACT 3SU1 Pushbuttons and Signaling Devices
• Technical Documentation
• Product Datasheet
• Additional Product Information
