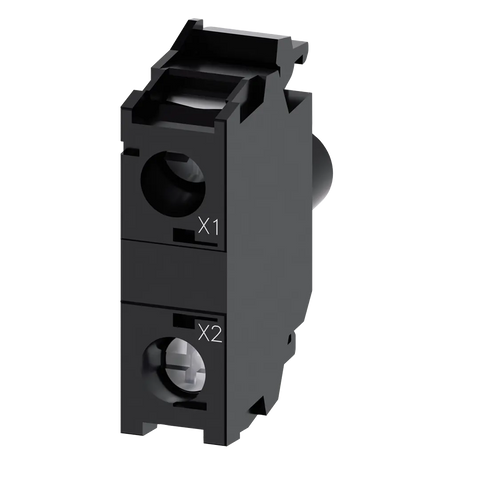

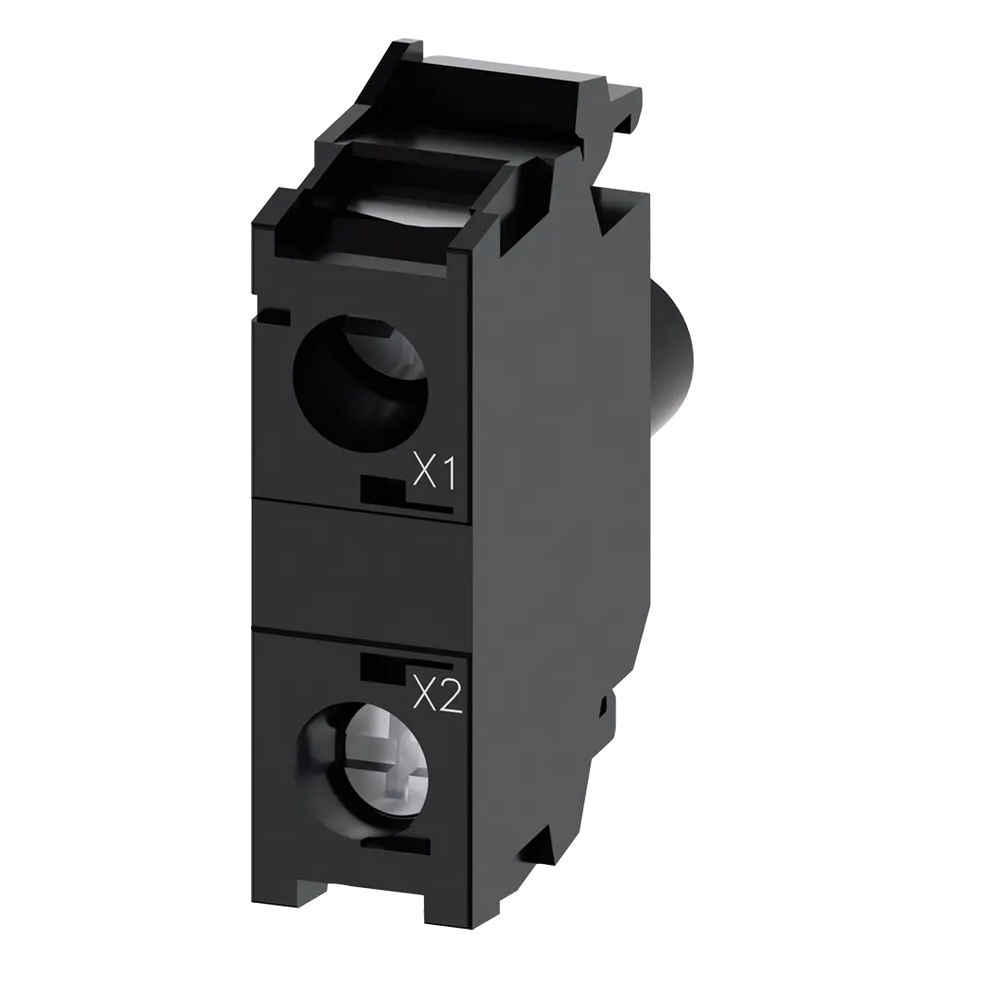

Siemens LED module with integrated LED 24 VAC/DC, green

Product Overview

LED module with integrated LED 24 V AC/DC, green, screw terminal, for front plate mounting from the SIRIUS ACT series. This energy-efficient LED illumination module provides bright green lighting for pushbuttons and indicator lights, utilizing advanced LED technology for reliable visual indication of normal operation and "go" conditions in industrial automation applications.

Key Features

• Integrated LED technology for superior illumination
• Green color for normal operation and "go" signal indication
• 24 V AC/DC dual voltage capability
• Screw terminal connection for reliable wiring
• Front plate mounting configuration
• Energy-efficient LED technology with extended operational lifespan
• High luminosity output for excellent visibility
• Part of the SIRIUS ACT portfolio with worldwide product approvals
• Innovative snap-on concept for easy installation with one hand and without special tools

Technical Specifications

• LED Color: Green
• Operating Voltage: 24 V AC/DC
• Frequency: 50/60 Hz (AC operation)
• Forward Current: 20mA maximum
• Connection Type: Screw terminal (screw-clamp connections)
• Mounting Method: Front plate mounting

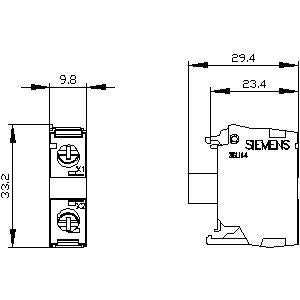

• Dimensions: 33.2mm H x 9.8mm W x 29.4mm D
• Insulation Voltage: 320V
• Protection Rating: IP40 enclosure, IP20 terminal
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Net Weight: 0.008 kg
• Packaging Dimensions: 103.00 x 51.00 x 27.00 mm
• Country of Origin: Czech Republic
• EAN: 4011209943094
• UPC: 804766073502

Compliance & Standards

• RoHS compliant since 01.10.2014
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control Regulations: AL: N / ECCN: N
• REACH Article 33 compliance for specific substances
• Compliant with IEC60947-1, EN60947-1, IEC60947-5-1, EN60947-5-1 standards
• Degree of pollution: 3

Applications This green LED module is designed for illuminating SIRIUS ACT pushbuttons and indicator lights in industrial automation systems. Perfect for "go" signals, normal operation indication, power-on status, process running confirmation, system ready indication, and general positive status communication. The green color is universally recognized for safe operation, system ready, and normal running conditions.

LED Technology Benefits

• Energy efficiency: Significantly lower power consumption (20mA max) compared to traditional incandescent bulbs
• Extended lifespan: Long operational life reduces maintenance requirements
• Instant illumination: No warm-up time for immediate visual feedback
• Vibration resistance: Solid-state technology withstands industrial environments
• Shock resistance: Robust construction for demanding applications
• Temperature stability: Consistent performance from -25°C to +70°C
• High reliability: Reduced failure rates compared to conventional lighting

Mounting & Installation

• Front plate mounting design for standard panel installations
• Snap-on concept allows one-hand installation
• No special tools required for assembly
• Compatible with SIRIUS ACT pushbuttons and indicator lights
• Groove-free mounting holes with integrated twist prevention
• Secure mounting prevents accidental disconnection

Green LED Advantages

• Normal operation indication: Industry-standard color for safe and normal operating conditions
• "Go" signal: Perfect for start commands and system ready indications
• Power status: Ideal for indicating system power-on and operational states
• Process confirmation: Clear indication of successful operations and normal processes
• Universal recognition: Globally understood symbol for safe operation and proceed signals
• Eye comfort: Pleasant color for continuous monitoring without strain

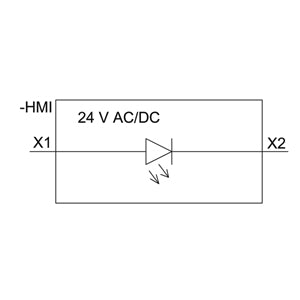

Electrical Features

• Dual voltage capability: 24 V AC/DC operation for flexible power supply options
• Low current consumption: 20mA maximum for energy-efficient operation
• High insulation voltage: 320V for electrical safety
• Screw terminal connection: Secure connections for reliable electrical contact
• Voltage tolerance: Stable operation across voltage variations

Environmental Durability

• Wide temperature range: -25°C to +70°C operational capability
• Extended storage range: -40°C to +80°C for long-term storage
• Vibration resistant: Solid-state technology for dynamic industrial environments
• Shock resistant: Robust construction for demanding applications
• IP40 enclosure protection: Protected against solid objects >1mm
• IP20 terminal protection: Safe terminal design for standard industrial use
• Industrial grade construction: Made from robust genuine metal and high-grade plastic

Integration Capabilities

• SIRIUS ACT compatibility: Seamless integration with SIRIUS ACT pushbuttons and indicators
• System flexibility: Easy incorporation into existing control panels
• Modular design: Simple replacement and maintenance procedures
• Universal mounting: Standard front plate configuration
• Panel efficiency: Compact design maximizes panel space utilization
• Stackable design: Compatible with contact modules for space-efficient configurations

Visual Performance

• High luminosity: Excellent brightness for clear visibility in industrial environments
• Uniform illumination: Even light distribution for consistent appearance
• Color consistency: Reliable green output throughout operational life
• Contrast optimization: Clear distinction from other panel indicators
• Professional appearance: Clean, modern aesthetic for industrial applications
• Attention-positive: Provides reassuring confirmation of normal operation

SIRIUS ACT Series Benefits

• Patented holder design: Integrated twist prevention for secure mounting
• Easy connectivity: Faultless connection capabilities
• Element-tested reliability: Extensively tested for mission-critical operations
• Worldwide approvals: Global product certifications for international use
• Modern design: Contemporary aesthetics for professional installations

System Integration

• Control panel compatibility: Standard mounting for industrial control panels
• Status indication systems: Perfect for process monitoring and control applications
• Safety systems: Complementary to red emergency and yellow caution indicators
• Machine operation displays: Clear indication of normal machine operation
• Process automation: Reliable feedback for automated industrial processes

Product Classification

• eClass: 27-37-12-09
• ETIM: EC000204
• UNSPSC: 39-12-15-44
