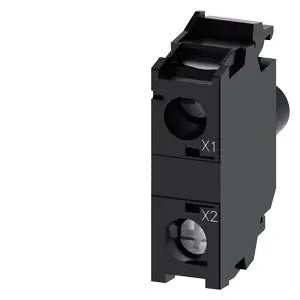

Siemens LED module with integrated LED 230 VAC, green
View on Siemens 📄 Datasheet
Siemens

Siemens LED module with integrated LED 230 VAC, green

SKU / Article No. 3SU1401-1BF40-1AA0
Product Type Control Panel
Product Class Lamp holder block for control circuit devices
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

LED module with integrated LED 230 V AC, green, screw terminal, for front plate mounting. This SIRIUS ACT LED module features green LED illumination with 230V AC operating voltage and screw-type terminal electrical connection. The module is designed for front plate mounting applications and provides reliable indication in industrial control systems.

Technical Specifications:

  • Operating Voltage: 230V AC
  • LED Color: Green
  • Current Consumption: 20mA maximum
  • Insulation Voltage: 320V
  • Connection Type: Screw terminal
  • Mounting: Front plate mounting

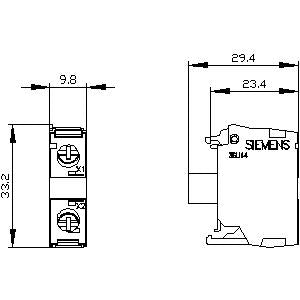

  • Dimensions: 33.2 mm H x 9.8 mm W x 29.4 mm D
  • Protection Class: IP40 enclosure, IP20 terminal
  • Operating Temperature: -25°C to +70°C (typical for SIRIUS ACT series)
  • Shock and Vibration Resistance: Yes
  • Pollution Degree: 3
  • Series: SIRIUS ACT

Product Details:

  • Article Number: 3SU1401-1BF40-1AA0
  • Net Weight: 0.009 kg
  • Package Dimensions: 30.00 x 35.00 x 10.00 mm
  • Country of Origin: Czech Republic
  • EAN: 4011209943438
  • UPC: 804766073748

Application: For illuminating SIRIUS ACT pushbuttons and indicator lights. High luminosity thanks to energy efficient LED technology. Easy installation and mounting to holder. Part of SIEMENS's modular, tried-and-tested complete range of pushbuttons and indicator lights in round design with global product approvals.

Compliance and Certifications:

  • RoHS compliant since October 1, 2014
  • WEEE (2012/19/EU) Take-Back Obligation: Yes
  • Export Control Regulations: AL: N / ECCN: N

REACH Information: This product contains substances from the REACH candidate list in concentrations higher than 0.1% w/w:

  • Lead monoxide (lead oxide)
  • 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current information, these substances do not pose risk when used as intended.

Download existing graphical data for this product:

Technical Specifications

IP RatingIP 40 (Enclosure) / IP20 (Terminal)
Country of OriginGermany
Temperature: Operating-25°C to 70°C
Part Depth (mm)29.4mm
Part Width (mm)9.8mm
Part Height (mm)33.2mm
Packaging size / unit pc(s)
Tightening Torque0.8 - 0.9 N·m
Connection TypeScrew Terminal
Type of VoltageAC/DC
Operating Voltage230 V
Current Consumption20 mA
Operating Periodoperating period typical 100 000 h
View complete specifications on Siemens
