Siemens

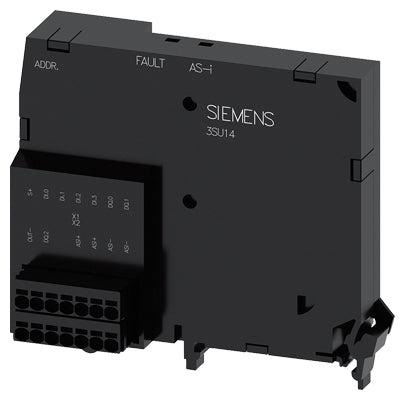

Siemens AS-Interface module, A/B slave, 4 inputs and 3 outputs Part number 3SU1400-2EJ10-6AA0
Back Order
View Full Product Details on Siemens
💬
Ask an Expert - Technical Support Available
Product Description
The SIRIUS ACT AS-Interface module is a black, spring-loaded terminal block supporting 4 digital inputs and 3 digital outputs. It operates at 30 V DC and is designed for secure floor mounting in applications that require reliable signal transmission.
Technical Specifications
| IP Rating | IP20 |
| Country of Origin | Germany |
| Temperature: Operating | -25°C to 70°C |
| Part Depth (mm) | 53.5mm |
| Part Width (mm) | 23.8mm |
| Part Height (mm) | 57.5mm |
| Packaging size / unit | pc(s) |
| Connection Type | Spring-loaded terminal (push-in) |
| Type of Voltage | DC |
| Operating Voltage | 18 / 31.6 V |
| Mounting Type | Floor mounting |
| Current Consumption | 150 mA |
