Harting Insert, screw, female, polycarbonate, size 16B, 80A

Product Overview

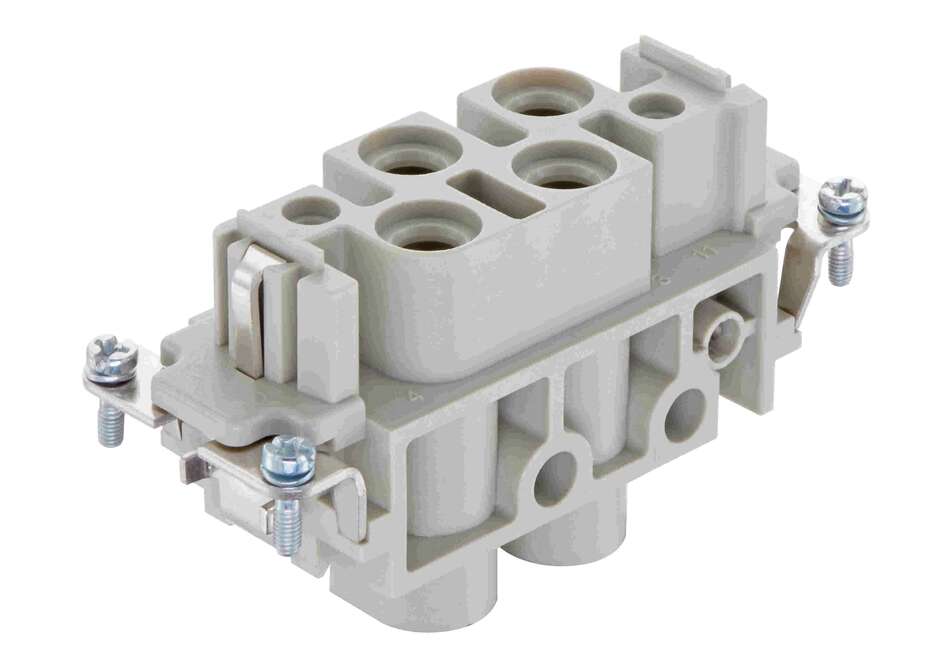

The HARTING Han K 4/2 Pin Female Insert (Article No.: 09 38 006 2701) is a high-performance heavy-duty connector insert designed for industrial applications requiring reliable power and signal transmission. This light gray female insert features screw terminal connections and is engineered to deliver exceptional performance in demanding environments.

Key Features:

• Contact Configuration: 4 load contacts + 2 signal contacts + PE (protective earth)
• Voltage Rating: 690/400 V
• Current Rating: 80A (load contacts) / 16A (signal contacts)
• Wire Compatibility: Accepts 20 to 14 AWG wire
• Terminal Type: Screw connection for secure wire termination
• Material: Polycarbonate housing with silver-plated copper alloy contacts
• Color: Light gray
• Series: Han-Com® connector system
• Shell Size: 16B rectangular configuration
• Contact Count: 7 total contacts

Technical Specifications:

• Gender: Female (receptacle)
• Contact Type: Screw socket terminals
• Wire Size Range: 14-20 AWG
• Insulation Material: High-grade polycarbonate
• Contact Plating: Silver-plated copper alloy for optimal conductivity
• Operating Environment: Designed for industrial applications

Applications: This Han K 4/2 female insert is ideal for industrial machinery, automation equipment, and power distribution systems where reliable power and signal connections are critical. The combination of power and signal contacts in a single insert makes it perfect for applications requiring both high-current power transmission and low-voltage control signals.

Benefits:

• Robust construction for harsh industrial environments
• Secure screw terminal connections prevent wire pullout
• Silver-plated contacts ensure long-term reliability
• Compact design maximizes connection density
• Compatible with Han-Com® connector system for modular flexibility

Compatibility: This female insert is designed to mate with corresponding Han K 4/2 male inserts and is compatible with standard Han-Com® connector housings and accessories from HARTING's comprehensive connector system.

Download existing graphical data for this product:

• Product Datasheet
• Technical Drawings
• Product Dimensions
• EPLAN Data Portal
