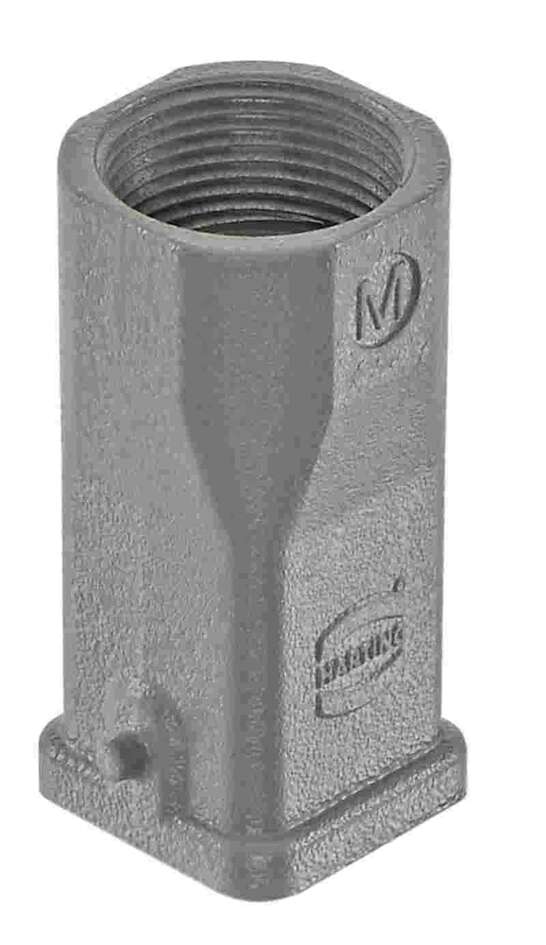

Harting Hood, single locking, top entry, M25, size 3A

Product Overview

The Han 3A-HTE-M25 is an industrial connector hood designed for applications requiring larger cable diameters. Features zinc die-cast construction with RAL 7037 powder-coated finish and single locking lever mechanism. Part of the Han A® series with size 3A configuration, specifically engineered with M25 cable entry to accommodate cables up to 25% wider than standard M20 configurations.

Key Features

• M25 cable entry for larger diameter cables
• Single locking lever for secure connection
• Size 3A with enhanced cable diameter capacity
• Zinc die-cast construction, RAL 7037 (dust grey) finish
• Top entry design for standard cable routing
• Temperature range: -40°C to +125°C
• IP44 standard, IP65/IP67 protection with seal screw
• Compatible with higher rated current inserts

Technical Specifications

• Housing Size: 3A
• Cable Entry: Top entry, 1x M25
• Cable Diameter: Enhanced capacity for larger cables
• Temperature Range: -40°C to +125°C
• Material: Zinc die-cast, powder-coated RAL 7037
• Protection: IP44 standard, IP65/IP67 with seal screw
• UL Rating: Type 12 (UL 50/UL 50E)
• Locking: Single locking lever
• Series: Han A®
• Standards: IEC 61984, IEC 60529

Installation Details

• M25 thread accommodates larger cable diameters
• Compatible with standard Han 3A mounting systems
• Requires seal screw for IP65/IP67 protection
• Enhanced cable holding area for improved strain relief

Applications

• Industrial applications requiring larger cable diameters
• Control systems with high current requirements
• Automation equipment using heavy-duty cables
• Manufacturing systems requiring enhanced power capacity
• Applications where higher cross-section cables are needed

Compatibility

• Compatible with Han 3A series inserts including Han Q series
• Works with higher rated current contact inserts
• Suitable for bigger cross-section cable applications
• Part of comprehensive Han A® connector system
• Enhanced compatibility with wide-diameter cable assemblies

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP44 standard, IP65/IP67 with seal screw
• UL Rating: Type 12 protection
• Construction: Corrosion-resistant powder coating

Certifications and Compliance

• Standards: IEC 61984, IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant, ELV compliant
• Regional: China RoHS compliant, REACH compliant
• Origin: Germany
• Quality: HARTING manufacturing standards
