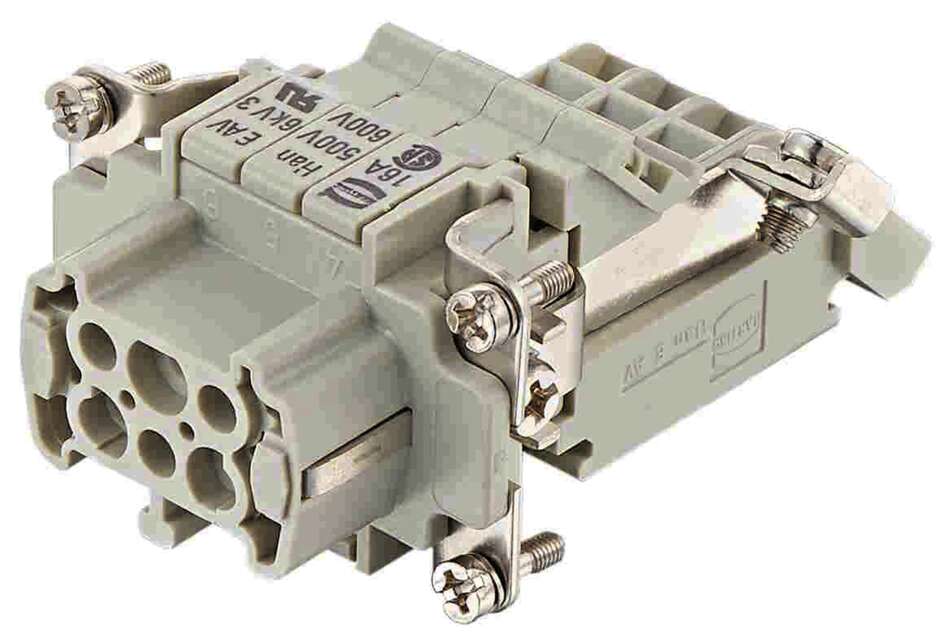

Harting Insert, cage-clamp, female, size 6B, c/s 0.14-.5mm²

Product Overview

The Han ES AV Pos. 6 Insert Terminal Block left (SKU: 09330064729) is a specialized 6-position terminal block insert designed for advanced connectivity applications. Part of the Han® ES AV series, this left-hand configuration insert features cage-clamp termination technology for secure, tool-free wire connections. Rated at 12A according to UL/CSA standards, this female insert provides reliable power and signal distribution in size 6B format, ideal for industrial automation and control applications requiring efficient terminal block connectivity.

Key Features:

• 6-Position Configuration: 6 female contacts in terminal block arrangement
• Cage-Clamp Technology: Tool-free, spring-loaded wire termination
• Left-Hand Orientation: Specific left-side cable entry design
• 12A Current Rating: UL/CSA rated for reliable power distribution
• Wide Wire Range: Accepts conductors from 0.14mm² to 2.5mm²
• Temperature Resistant: Operating range from -40°C to +125°C
• Quick Installation: No special tools required for wire termination
• Flame Retardant: UL 94 V-0 flammability rating

Technical Specifications:

• Article Number: 09 33 006 4729
• Category: Inserts
• Series: Han® ES AV
• Element: Terminal block
• Termination Method: Cage-clamp termination
• Gender: Female
• Number of Contacts: 6
• Size: 6B
• Current Rating (UL/CSA): 12A
• Voltage Rating (UL/CSA): 600V
• Wire Size Range: 0.14mm² to 2.5mm²
• Operating Temperature: -40°C to +125°C
• Housing Material: Polycarbonate
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy, silver plated
• Flammability Class: UL 94 V-0
• Cable Entry: Left-hand side

Applications:

Essential for industrial applications requiring efficient terminal block connectivity with easy maintenance access. Ideal for control cabinet installations, industrial automation systems, signal distribution panels, modular machinery connections, field device connections, and applications where tool-free wire termination and left-side cable management are critical for installation efficiency and maintenance accessibility.

Compatibility:

• Housing Compatibility: Compatible with 6B size hoods and housings
• Series Compatibility: Works within Han® ES AV connector system
• Mating Options: Pairs with corresponding male terminal block inserts
• System Integration: Designed for Han® ES AV industrial connector systems
• Wire Compatibility: Accepts wire sizes from 0.14mm² to 2.5mm²
• Fixing Elements: Compatible with 09330009929 fixing element for ES AV
• Standard Compliance: UL/CSA certified for 600V applications

Installation & Tools:

• Tool-Free Termination: Cage-clamp technology requires no crimping tools
• Wire Preparation: Simple wire stripping for insertion
• Wire Range: Accommodates 0.14mm² to 2.5mm² conductors
• Spring-Loaded Contacts: Maintains consistent contact pressure
• Left-Side Access: Cable entry from left side for specific routing needs
• Quick Connection: Push-in wire termination for rapid assembly
• Maintenance Friendly: Easy wire removal and replacement
• Professional Installation: Suitable for industrial panel building

Download existing graphical data for this product:

• Product Datasheet
• Technical Drawing
• Product Declaration Certificate
