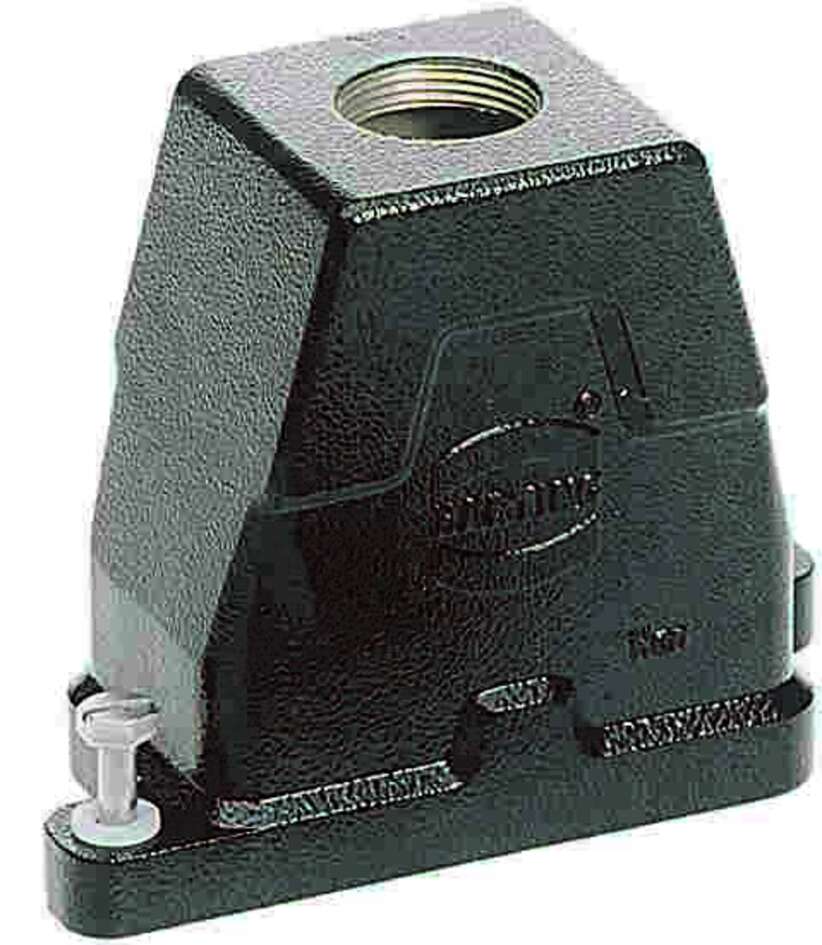

Harting Hood, toggle locking, top entry, PG21, size 16B

Product Overview

The Han 16HPR-HTE-Pg 21 Toggle Lock Hood is a robust cable-side connector housing designed for harsh outdoor environments requiring reliable top-entry cable connections. Features aluminum die-cast construction with toggle locking mechanism and integrated Pg 21 cable gland for secure cable entry. Part of the Han® HPR series with size 16B configuration, providing superior protection for demanding industrial applications where top cable entry and environmental sealing are critical.

Key Features

• Hood-type housing for cable-side connections
• Top entry (HTE) configuration with Pg 21 cable gland
• Toggle locking mechanism for quick and secure connection
• Size 16B configuration for larger connector applications
• Aluminum die-cast construction for maximum durability
• Multiple IP protection ratings: IP65/IP68/IP69
• Powder-coated surface in RAL 9005 (jet black)
• NBR sealing material for environmental protection
• Designed for harsh outdoor environments

Technical Specifications

• Housing Size: 16B
• Housing Type: Hood (cable-side)
• Entry Type: Top entry (HTE)
• Cable Gland: Pg 21 threaded cable entry
• Locking Type: Toggle lock mechanism
• Temperature Range: -40°C to +125°C
• IP Protection: IP65/IP68/IP69 (IPX9K per ISO 20653)
• UL Type Rating: 4, 4X, 12 (per UL 50/UL 50E)
• Housing Material: Aluminum die-cast
• Surface Finish: Powder-coated
• Housing Color: RAL 9005 (jet black)
• Seal Material: NBR (Nitrile rubber)
• Series: Han® HPR
• Application Standard: IEC 61984

Installation Details

• Top cable entry through integrated Pg 21 cable gland
• Toggle locking mechanism for rapid connection/disconnection
• Suitable for cables requiring Pg 21 gland size
• Secure environmental sealing when properly assembled
• Compatible with Han 16 series connector inserts

Applications

• Mobile equipment requiring quick-disconnect capability
• Outdoor industrial machinery with top cable routing
• Marine and offshore installations with space constraints
• Transportation systems requiring rapid connection
• Process control equipment in harsh environments
• Machinery requiring frequent connector engagement/disengagement

Compatibility

• Compatible with Han 16 series connector inserts
• Designed for use with corresponding Han 16HPR panel-mounted housings
• Suitable for various Han 16 insert configurations
• Part of comprehensive Han® HPR connector system

Environmental Protection

• IP65: Complete dust protection and water jet resistance
• IP68: Dust-tight and submersion protection
• IP69: High-pressure, high-temperature washdown protection
• Temperature Range: -40°C to +125°C operational
• Corrosion Resistant: Aluminum construction with protective coating
• Cable Sealing: Integrated Pg 21 gland for secure cable entry

Important Configuration

• Requires compatible panel-mounted housing for complete assembly
• Cable diameter must match Pg 21 gland specifications
• Toggle lock mechanism requires proper alignment for secure connection
• Environmental protection depends on correct cable gland installation
• Follow manufacturer specifications for optimal performance

Product Status

• Availability: This product is no longer orderable
• Support: Contact local distribution partner for alternatives
• Replacement: Consult HARTING for current equivalent products
• Legacy Support: Technical documentation available for existing installations

Certifications and Compliance

• Standards: IEC 61984, IEC 60529
• UL Type Rating: UL 50/UL 50E (Type 4, 4X, 12)
• CSA Certification: CSA-C22.2 No. 182.3
• Environmental: IP65/IP68/IP69 per IEC 60529
• ISO 20653: IPX9K high-pressure washdown protection
• RoHS: Compliant
• ELV: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant with applicable exemptions
• REACH compliance documentation available
• ELV directive compliant
• Environmental protection suitable for outdoor applications
