Harting Hood, single locking, top entry, PG21, size 16B

Product Overview

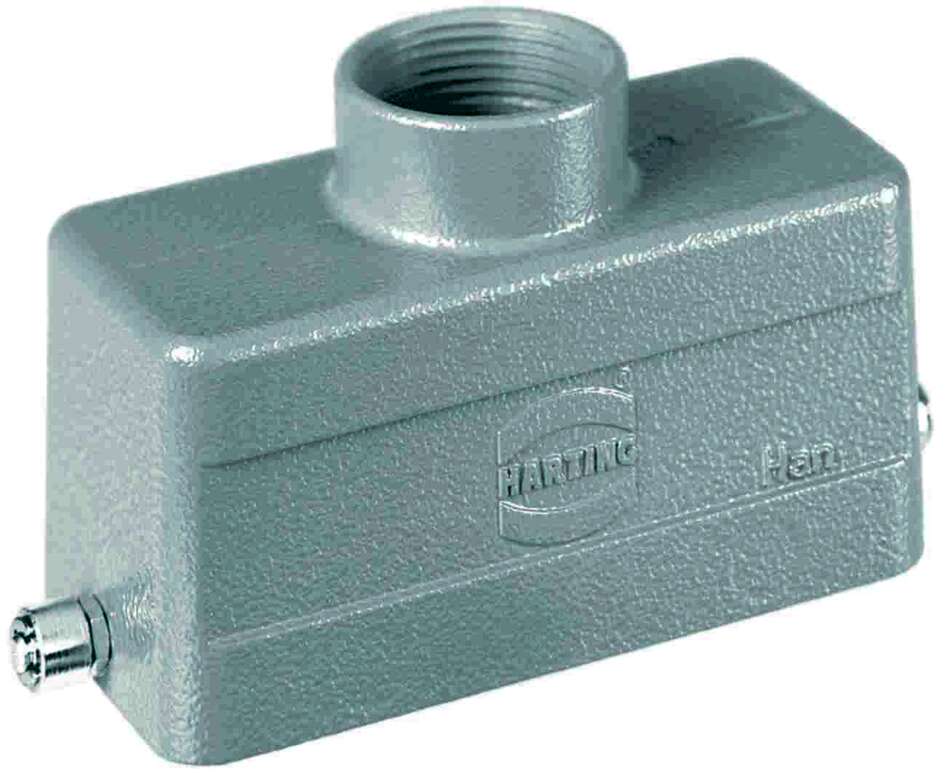

The Han B Hood Top Entry LC 2 Reels PG 21 (SKU: 09300161440) is a low-construction die-cast aluminum hood designed for top cable entry applications with reel mounting configuration. Features compact design with PG 21 cable entry and provides robust connectivity solutions for frequent mating applications in industrial environments.

Key Features:

• Low Construction (LC): Compact profile design for height-restricted applications
• Top Entry Configuration: Cable entry from the top for vertical routing applications
• 2-Reel Mounting: Secure mechanical attachment optimized for frequent connect/disconnect
• PG 21 Cable Entry: Standard PG 21 thread for medium-duty cable glands
• Lightweight Design: Only 144g for minimal installation weight
• Die-Cast Construction: RAL 7037 (dust grey) aluminum housing with powder coating

Technical Specifications:

• Article Number: 09 30 016 1440
• Category: Hoods/Housings
• Series: Han® B
• Size: 16B
• Type: Hood, top entry, low construction
• Construction: Low construction (LC)
• Mounting: 2 reels
• Cable Entry: 1x PG 21
• Material: Die-cast aluminum, powder-coated
• Weight: 144g
• Dimensions: 93.5 x 43 x 45mm (approx.)

Compliance & Certifications:

• RoHS Status: Exempt
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: UL, CSA, SEV certified
• Country of Origin: Germany

Applications: Ideal for automation equipment, control panels, and industrial machinery requiring frequent mating operations with space constraints. The low construction and lightweight design make it perfect for applications where vertical clearance and weight are critical factors.

Compatibility:

• Compatible with Han® B series inserts from D, DD, E, ES, EE, Com, HsB and Modular series
• Accommodates four inserts within 16B housing for modular applications
• Should not be mated or unmated under electrical load
• Polarization recommended for line arrangements to prevent wrong connections
