Harting Hood, double locking, top entry, 2x PG29, size 24B

Product Overview

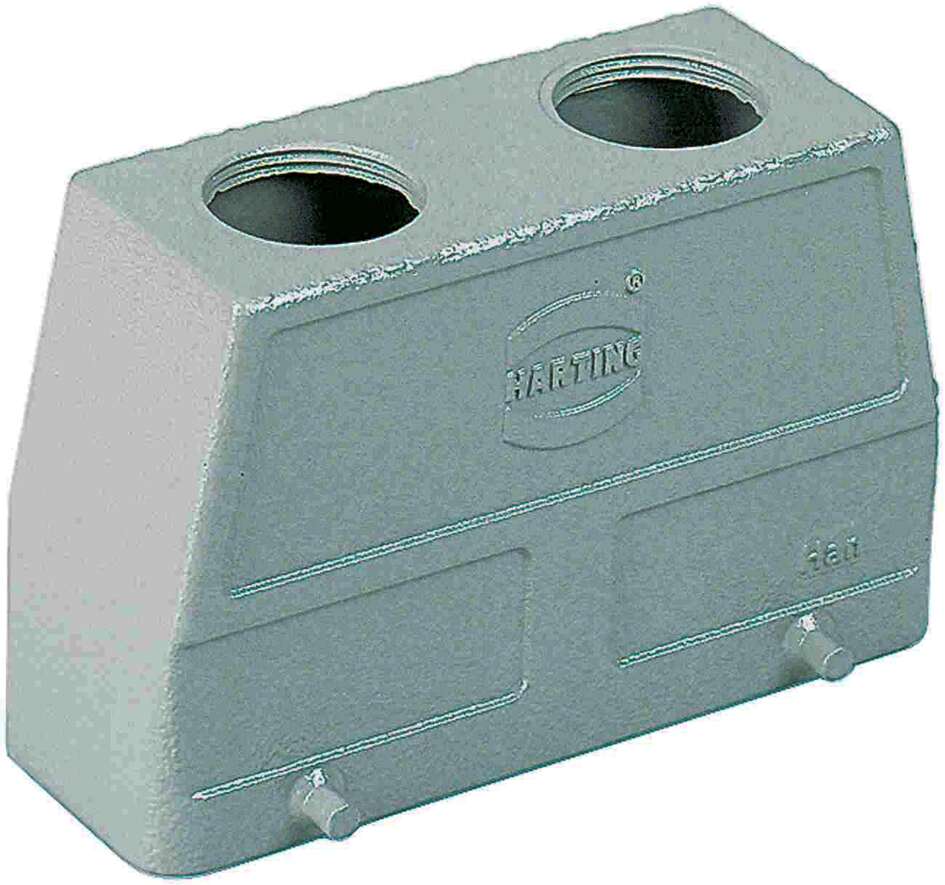

The Han B Hood Top Entry HC 4 Pegs 2 x PG 29 (SKU: 09300240461) is a high-construction aluminum die-cast hood designed for maximum capacity applications requiring dual heavy-duty cable entries. Features double locking lever mechanism with 4-peg mounting and dual PG 29 cable entries for the most demanding industrial connector systems in size 24B applications.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for highest density applications
• High Construction (HC): Enhanced height for superior cable management and bend radius
• Dual PG 29 Entries: Two large-diameter PG 29 cable entries for heavy-duty applications
• Top Entry Configuration: Cable entry from the top for vertical routing applications
• 4-Peg Mounting: Secure mechanical attachment with four mounting pegs
• Double Locking Lever: Enhanced connection security and reliability

Technical Specifications:

• Article Number: 09 30 024 0461
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Hood, top entry, high construction
• Construction: High construction (HC)
• Mounting: 4 pegs
• Cable Entries: 2x PG 29
• Locking System: Double locking lever
• Material: Aluminum die-cast, powder-coated
• Finish: RAL 7037 (dust grey)
• Protection Rating: IP65, IP67

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Protection Rating: IP65, IP67 for demanding environmental conditions
• Industrial Standards: Suitable for the most demanding industrial applications

Applications: Essential for the most demanding high-power, high-density industrial applications requiring dual heavy-duty cable management. Ideal for large-scale power distribution, complex automation systems, and industrial equipment where multiple large-diameter cables need secure routing with maximum connectivity capacity.

Compatibility:

• Compatible with Han® B series size 24B base housings and inserts
• Dual PG 29 entries accommodate the largest standard cable glands
• High construction provides maximum cable bend radius for large cables
• Accommodates extensive insert configurations for complex connectivity requirements
• Should not be mated or unmated under electrical load
