Harting Connector, pushpull, crimp, 10-contact, IP65/67, 5A

Product Overview

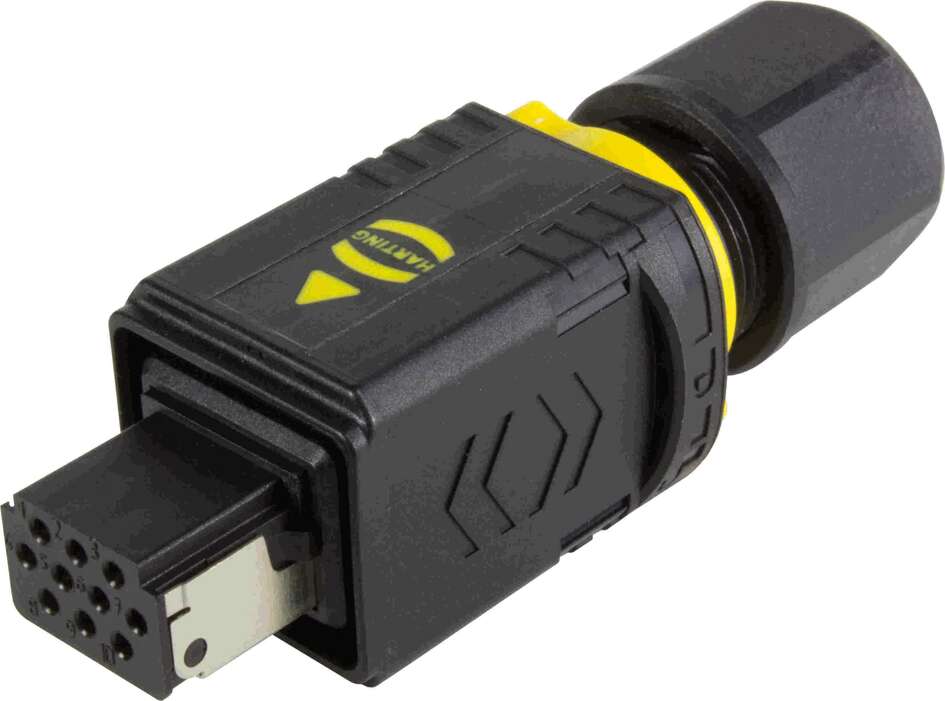

The PushPull V4 Signal 10-Pole Plastic Plug is an industrial connector for demanding signal transmission applications requiring rapid connection/disconnection. Features PushPull locking mechanism with plastic housing for reliable multi-pole signal connectivity. Part of the HARTING PushPull V4 series, providing robust signal transmission where fast connection, environmental protection, and signal integrity are critical.

Key Features

• 10-pole configuration for multi-signal applications
• PushPull locking for rapid connection/disconnection
• Plastic housing construction for lightweight durability
• Complete connector set with housing and female insert
• Cat5 Class D performance up to 100 MHz
• Temperature range: -40°C to +85°C
• Cable diameter: 4.5-10 mm
• Tightening torque: 1.3-1.5 Nm

Technical Specifications

• Connector Type: Signal plug connector
• Number of Poles: 10-pole
• Performance: Cat5 Class D up to 100 MHz
• Wire Compatibility: AWG 18-26, 0.13-0.82 mm²
• Cable Diameter: 4.5-10 mm
• Temperature Range: -40°C to +85°C
• Tightening Torque: 1.3-1.5 Nm
• Series: HARTING PushPull (V4)
• Housing Material: Plastic
• Locking Type: PushPull mechanism

Installation Details

• PushPull mechanism for quick connection/disconnection
• Complete set includes plastic housing and female insert
• Wide cable diameter range accommodates various applications
• Field-assembly design for installation flexibility

Applications

• Industrial automation signal transmission
• Process control systems with multiple signals
• Mobile equipment requiring frequent engagement
• Control panel interconnections
• Sensor and actuator wiring
• Manufacturing equipment signal distribution

Compatibility

• Compatible with HARTING PushPull V4 system components
• Successor to previous HPP V4 signal models
• Suitable for Cat5 signal transmission requirements
• Compatible with industrial signal protocols

Environmental Protection

• Temperature Range: -40°C to +85°C
• Vibration Resistance: 10-500 Hz, 5g per IEC 61373
• Shock Resistance: 50g/11ms impact resistance
• Material: UL94 V-0 rated thermoplastic
• Industrial Design: Robust plastic construction

Important Configuration

• Cable diameter must be within 4.5-10 mm range
• Follow 1.3-1.5 Nm tightening torque specification
• PushPull mechanism requires adequate access space
• Proper wire gauge selection critical for performance

Certifications and Compliance

• Standards: Cat5 Class D transmission standard
• CSA Certification: CSA-C22.2 No. 182.3
• Material Flammability: UL94 V-0
• Vibration/Shock: IEC 61373 Category 1 Class B
• Temperature Rating: -40°C to +85°C
• RoHS: Compliant
• Country of Origin: Germany

Environmental Compliance

• RoHS compliant design
• UL94 V-0 flame retardancy rating
• Industrial-grade plastic construction
• Long-term reliability in demanding applications
