Harting Surface housing, double locking, side entry, PG21

Product Overview

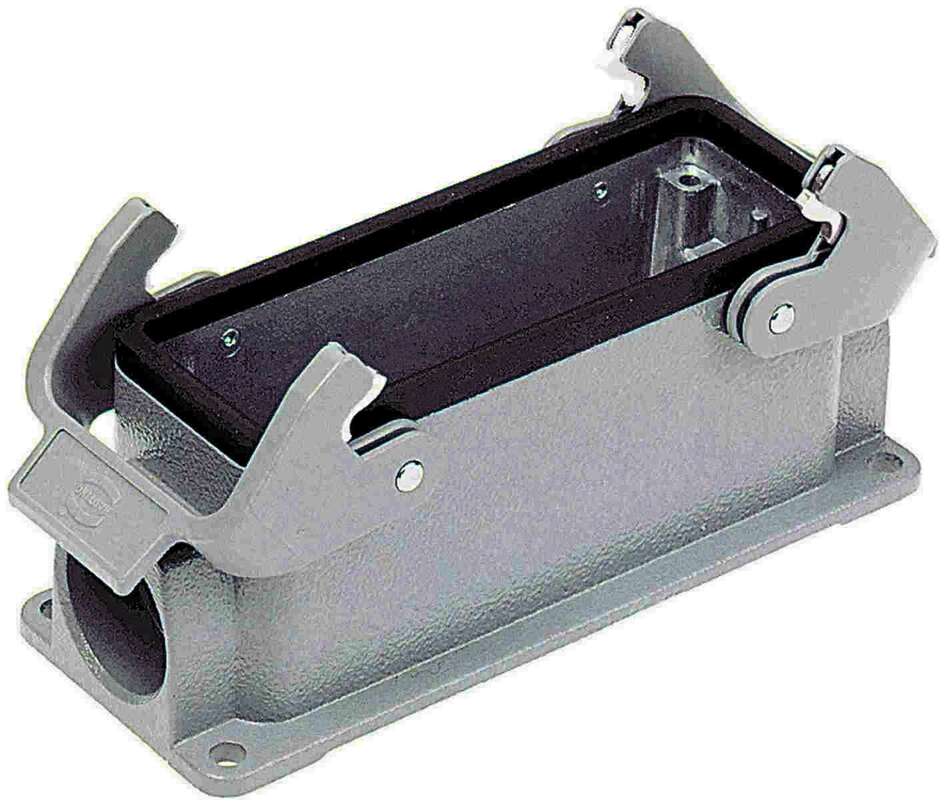

The Han B Base Surface LC 2 Levers 1xPg21 (SKU: 09300241230) is a low-construction surface-mount base housing designed for maximum capacity applications with space-saving requirements. Features dual locking lever mechanism and single PG 21 cable entry for secure mounting solutions in size 24B applications where compact profile is essential.

Key Features:

• Maximum Capacity: Size 24B - largest in the Han® B series for highest density applications
• Low Construction (LC): Compact profile design for height-restricted applications
• Surface Mount Design: Direct mounting to panels or equipment surfaces
• Dual Locking Levers: Two-lever locking mechanism for enhanced connection security
• Single PG 21 Entry: One cable entry with PG 21 thread configuration
• Space-Efficient: Maximum connectivity in minimal footprint

Technical Specifications:

• Article Number: 09 30 024 1230
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B (maximum capacity)
• Type: Base housing, surface mount
• Construction: Low construction (LC)
• Locking System: 2 levers
• Cable Entry: 1x PG 21
• Mounting Type: Surface mount

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating (locking levers)
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• Industrial Standards: Suitable for demanding industrial applications

Applications: Essential for maximum capacity applications in space-constrained environments requiring size 24B connectivity. Ideal for compact control panels, automation equipment, and industrial systems where height limitations demand low-profile solutions while maintaining maximum connectivity capacity.

Compatibility:

• Compatible with Han® B series size 24B inserts and mating connectors
• Low construction provides compact profile while maintaining full 24B capacity
• Single PG 21 entry optimized for focused cable management
• Surface mount design offers versatile installation options
• Requires appropriate Han B series inserts (sold separately)

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
