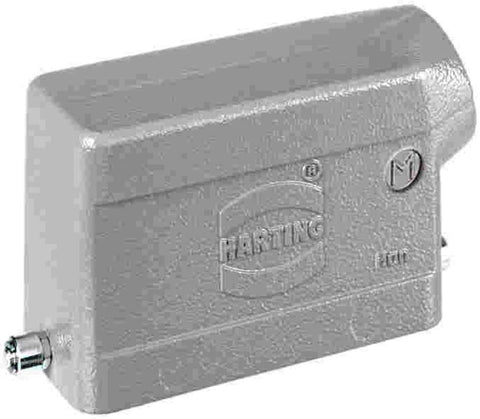

Harting Hood, side entry, M25, single locking, size 24B

Product Overview

The Han B Hood Side Entry M25 is a low construction connector hood for industrial applications requiring lateral cable routing with single lever operation. Features aluminum die-cast construction with single locking lever mechanism and side entry M25 cable gland for reliable electrical connections in demanding industrial environments with streamlined operation and lateral access.

Key Features

• Side entry hood with low construction design
• Single locking lever mechanism for quick connections
• Size 24B with single M25 side cable entry
• Aluminum die-cast construction, RAL 7037 finish
• Low construction profile for space-constrained installations
• IP65/IP66/IP67 protection, suitable for harsh industrial environments

Technical Specifications

• Housing Size: 24B
• Construction: Low construction side entry hood
• Cable Entry: Side entry, 1 x M25
• Locking System: Single locking lever
• Temperature Range: -40°C to +125°C
• Protection: IP65, IP66, IP67, UL 50/UL 50E type 4/4X/12
• Material: Aluminum die-cast, powder-coated RAL 7037
• Mating Cycles: ≥500 cycles
• Standards: IEC 60529, IEC 61984, UL 50/UL 50E

Installation Details

• Low construction design minimizes profile height
• Single locking lever provides quick and secure mechanical connection
• Side entry configuration for lateral cable routing and access
• Streamlined operation for frequent connection/disconnection

Applications

• Industrial automation and control systems requiring side-entry hoods
• Machinery and equipment with lateral cable routing requirements
• Control panels needing quick single-lever connections
• Applications requiring frequent connector operation with side access

Compatibility

• Compatible with Han 24B series bases and inserts
• Part of Han B® connector system
• Standard hood for industrial connectors

Environmental Protection

• Protection: IP65/IP66/IP67 rating against dust and water ingress
• Construction: Corrosion-resistant aluminum die-cast housing
• Temperature: -40°C to +125°C operational range
• Durability: ≥500 mating cycles with industrial-grade construction

Certifications and Compliance

• Standards: IEC 60529, IEC 61984, UL 50/UL 50E
• Certifications: CSA-C22.2 No. 182.3 ECBT8.E235076
• Flammability: V-0 according to UL 94 (locking levers)
• Compliance: RoHS, ELV, REACH compliant
• Origin: Germany
