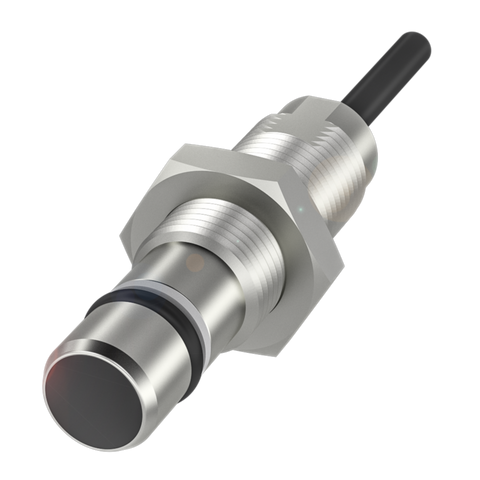

Balluff Pressure-rated inductive sensor, PNP, NO, M12, flush, 5m PUR Part number BHS002J

This inductive sensor detects the presence of metal targets at distances up to 1.5mm and provides a PNP normally open output. The M12 housing is manufactured from stainless steel with a PTFE O-ring and EP sensing surface, rated IP68 and designed for flush mounting, making it suitable for pressure-rated applications in demanding industrial environments. It operates from 10-30 VDC and connects via a 5m PUR cable, switching at frequencies up to 2000 Hz.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
