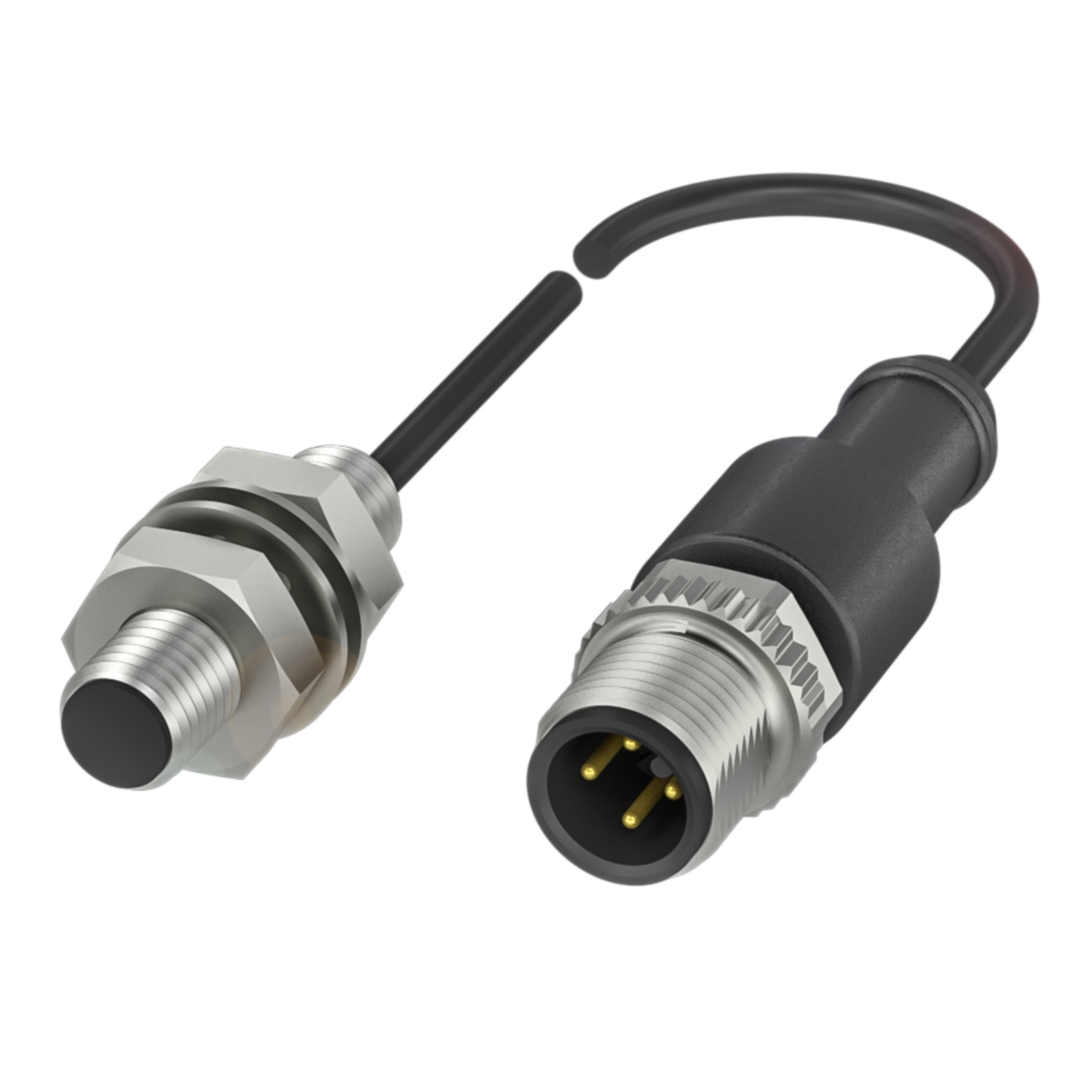

Balluff Inductive standard sensor, PNP, NO, M8, flush, M12 4-pin Part number BES00N8

This inductive sensor is an M8 flush-mount device with a PNP normally open output, designed to detect metallic targets at a rated operating distance of 1.5 mm. The stainless steel housing and IP68 rating suit installations where washdown or moisture exposure is expected, while the M12 4-pin connector with 0.20 m PUR cable simplifies field wiring. Operating from 10-30 VDC and offering a switching frequency of 5000 Hz, it is suited to compact mounting locations on production machinery and automation panels where flush installation is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
