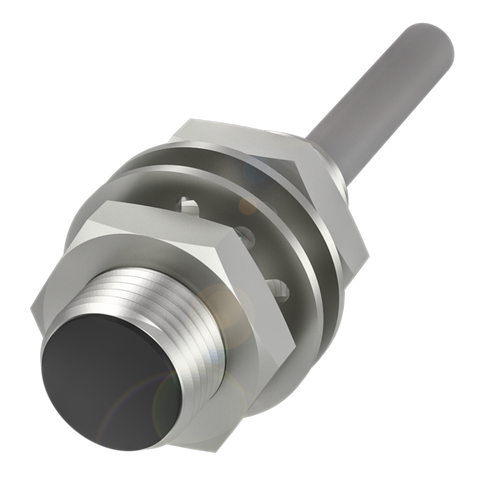

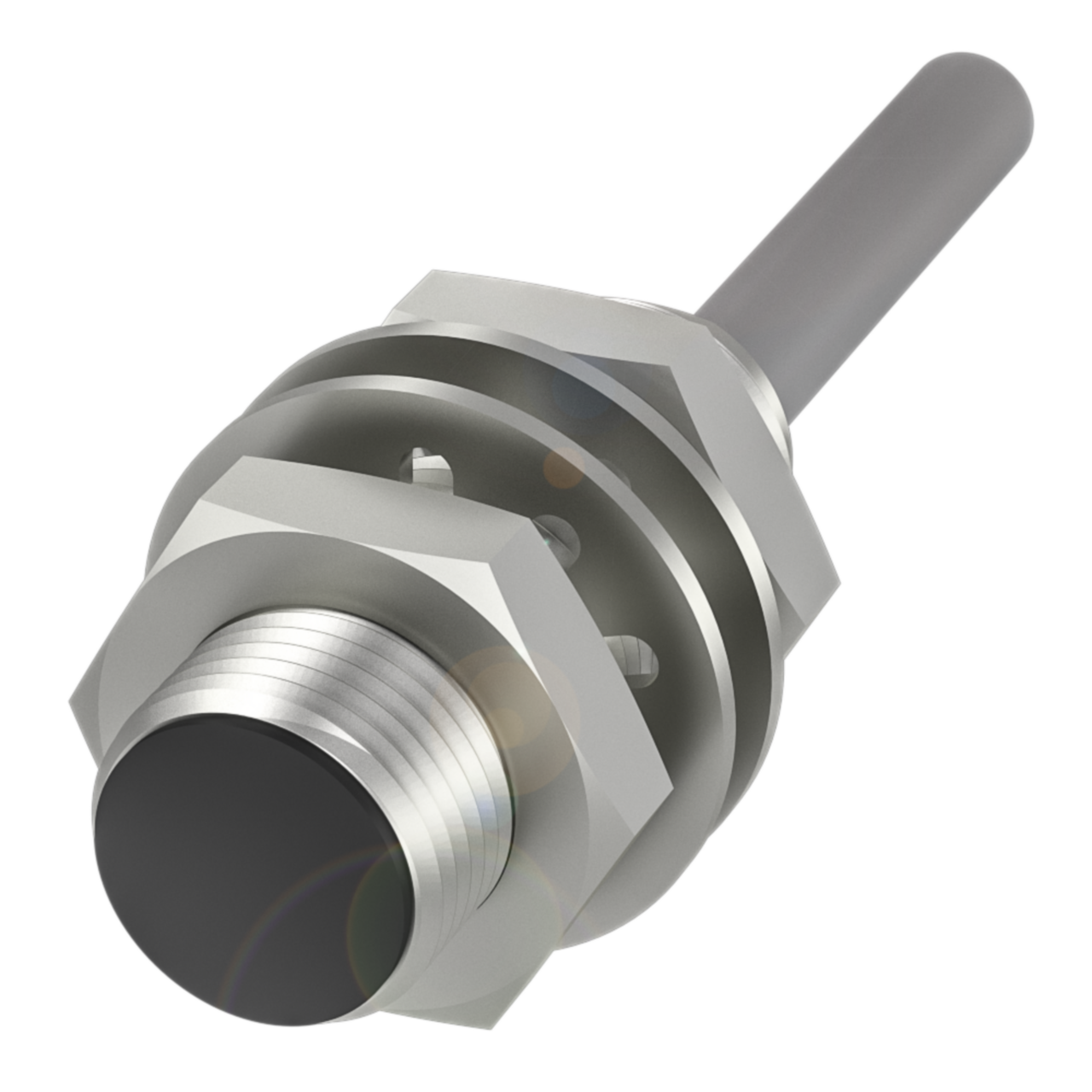

Balluff Inductive standard sensor, PNP, NO, M12, flush, 3m PVC Part number BES00PM

This inductive proximity sensor detects metal targets at a rated operating distance of 4mm and provides a PNP normally open output for switching signals into a PLC or control input. Housed in an M12x1 brass, nickel-free coated body with a flush mounting design, it is suited to installation in confined or flush-fitted panel and machine locations where the sensor face sits level with the mounting surface. It operates from a 10-30 VDC supply and is terminated with a 3m PVC cable for direct connection into automation wiring.

Key specifications

• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Flush mounting
