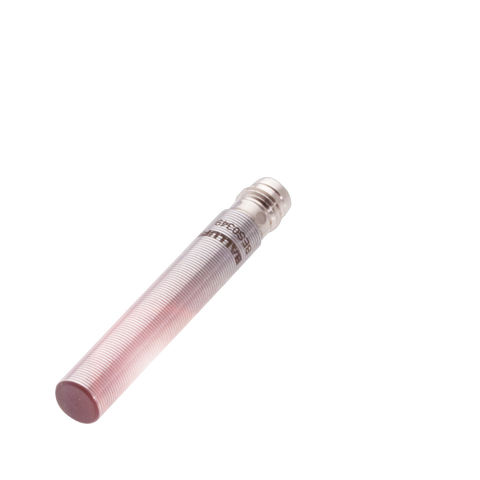

Balluff Inductive standard sensor, PNP, NC, D8.0, flush, M8 3-pin Part number BES0349

This inductive sensor detects metal targets at a rated operating distance of 2mm and provides a PNP normally closed output. The stainless steel housing with flush mounting design and IP68 rating suits installation in confined machine or panel spaces where the sensor face sits level with the mounting surface. It connects via an M8x1, 3-pin male connector and operates on 10-30 VDC, making it suitable for standard automation control circuits requiring compact position or presence detection.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M8x1 / Male / 3-pin
• Output: PNP normally closed (NC)
• Mounting: Flush mounting
