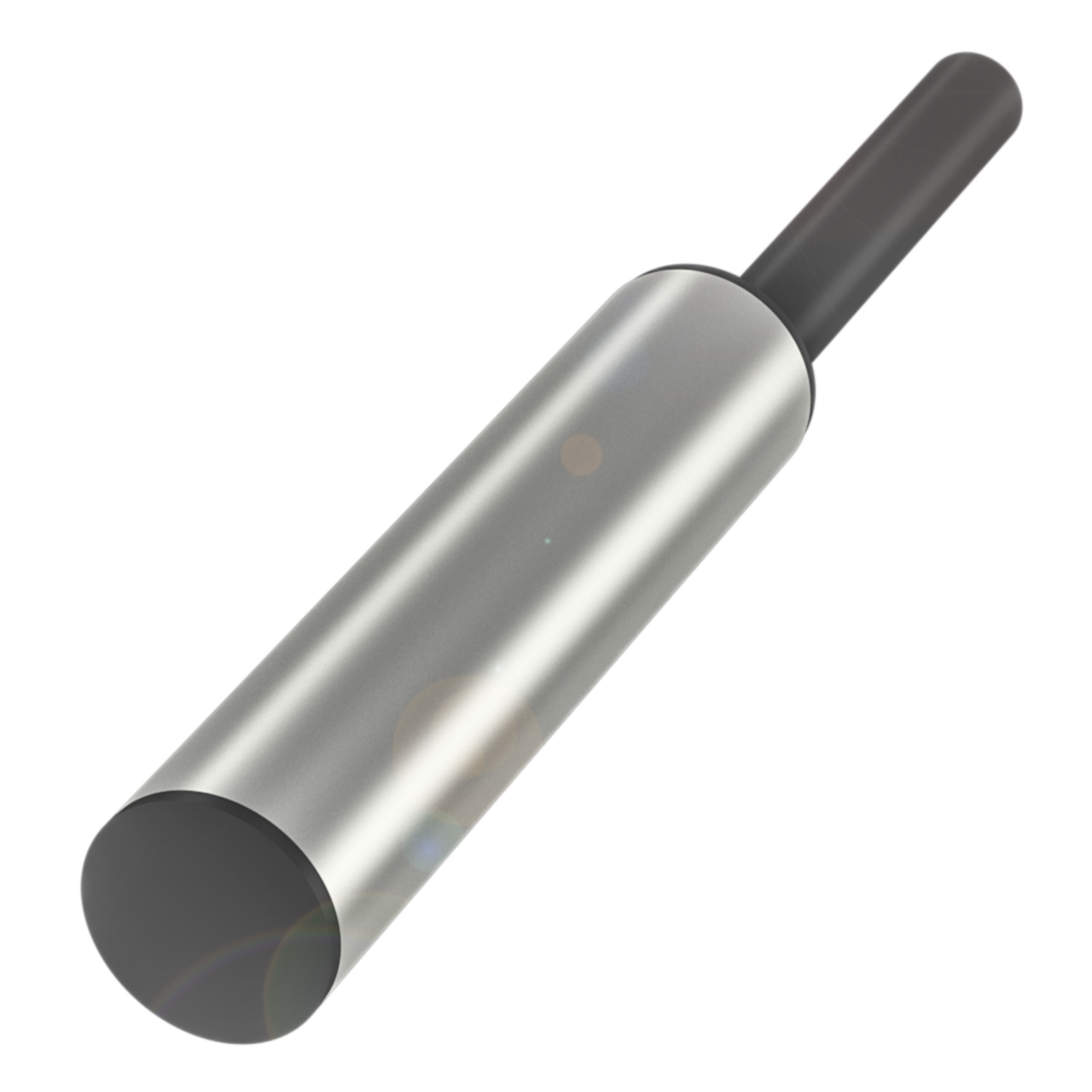

This inductive sensor is designed for detecting metallic objects with a rated operating distance of 2mm. It is suitable for use in harsh environments with a wide temperature range of -40°C to 85°C. The sensor features short-circuit protection, a robust stainless steel housing, and is compliant with IEC 60947-5-2 standards. The sensor operates at a voltage of 10-30V DC and provides reliable performance for demanding applications.
| IP Rating | IP68 |
| Compliance/Certifications | cULus CE WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | Stainless steel |
| Material: Jacket / Cover Nut | PUR |
| Material: Sensing Surface / Contacts | PBT |
| Size | D6.5 |
| Cable Length (mm) | 30mm |
| Part Diameter (mm) | 6.5mm |
| Conductor Cross-section | 0.14 mm² |
| Connection Style | Cable, 5.00 m, PUR |
| Tightening Torque | 8 Nm |
| Rated Operating Distance (mm) | 2mm |
| Switching Output | NPN normally open (NO) |
| Switching Frequency (Hz) | 5000 Hz |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Rated Operating Current | 200 mA |
