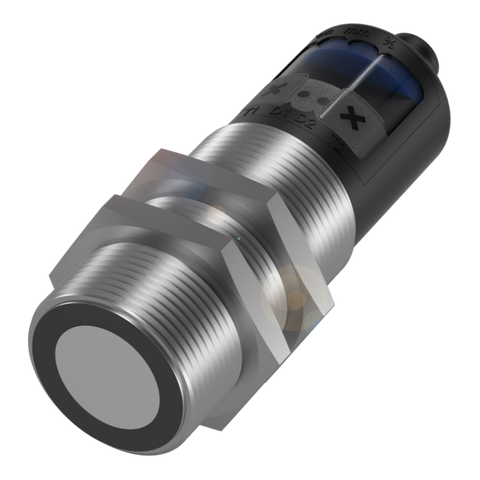

Balluff BUS M30M1-PPC-20/130-S92K Ultrasonic sensor, Ø 30mm Part number BUS0038

This ultrasonic sensor detects objects by measuring the echo time of emitted ultrasonic pulses, independent of colour, transparency or surface finish. The Ø30 mm housing offers a sensing range of 200 to 2000 mm and a PNP switching output configurable as normally open or normally closed. It connects via an M12x1 5-pin connector and operates from a 9...30 VDC supply, with an IP67-rated brass and PBT/TPU housing suited to industrial environments between -25 and 70°C.

Key specifications

• IP rating: IP67
• Operating voltage: 9...30 VDC
• Connection: Connector, M12x1-Male, 5-pin
• Output: PNP normally open/normally closed (NO/NC)
• Operating temperature: -25...70 °C
• Material: Brass, nickel-platedPBT, TPU
