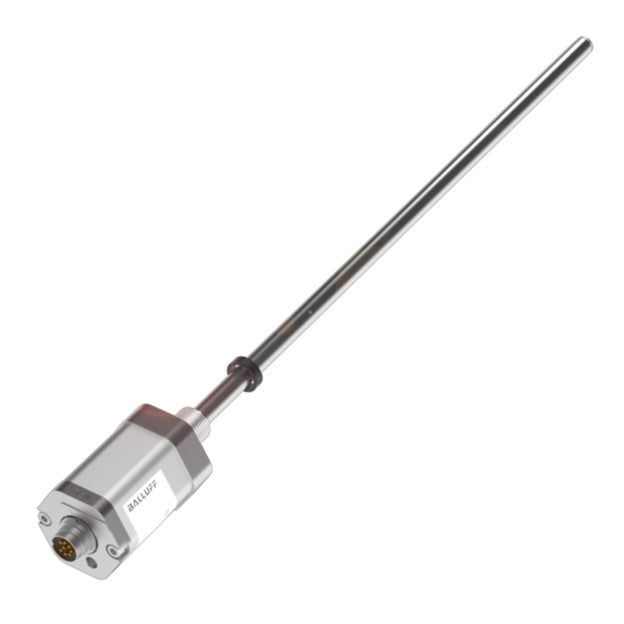

Balluff BTL7-E100-M0650-B-S32 Magnetostrictive linear position sensor Part number BTL06Z5

This magnetostrictive linear position sensor from Balluff provides absolute position feedback for stroke measurement in hydraulic cylinders and linear actuators. It is housed in anodised aluminium with an FKM O-ring, sealed to IP67 with connector fitted, and terminates in an M16x0.75 8-pin connector. Mounting is via an M18x1.5 threaded flange, with an operating voltage range of 20-28 VDC, suiting installation in industrial automation equipment where continuous position monitoring is required.

Key specifications

• IP rating: IP67, with connector
• Operating voltage: 20 - 28 VDC
• Connection: Connector, M16x0.75, 8-pin
• Mounting: Threaded flange M18x1.5
