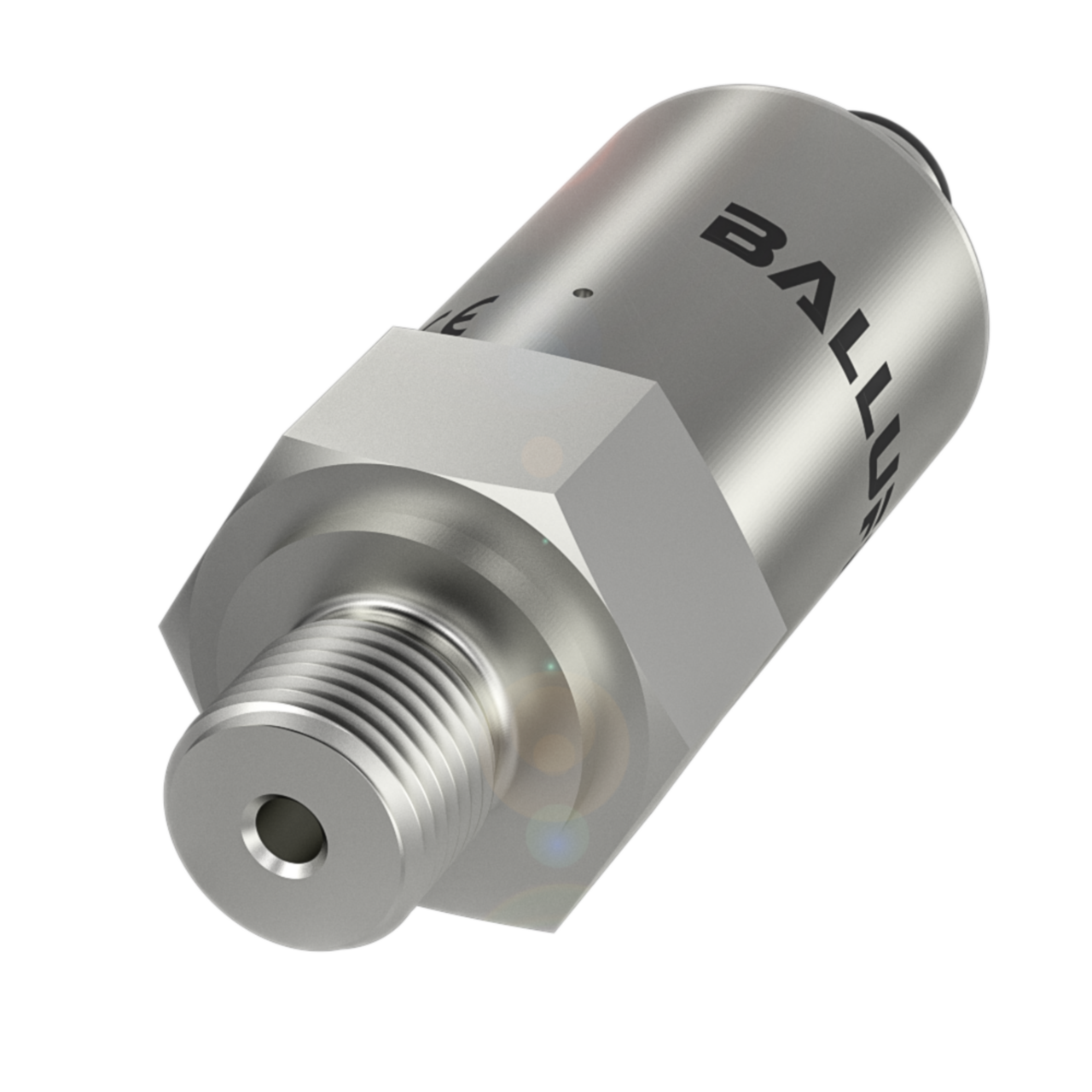

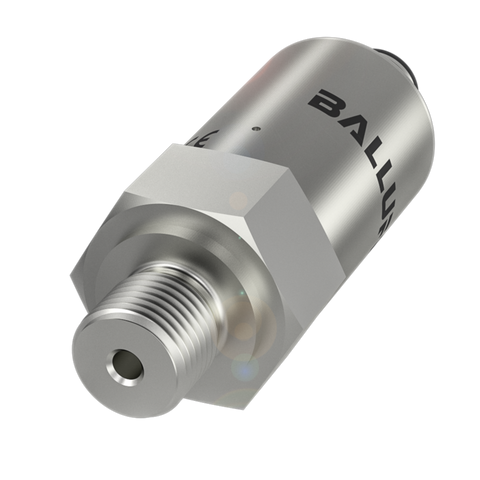

Balluff BSP V002-DV004-D06S1A-S4 Pressure sensor, male, 4-pin Part number BSP00PJ

This is a pressure sensor from Balluff with an M12x1, 4-pin male A-coded connector, designed for monitoring pressure in industrial pneumatic and hydraulic systems. It provides a PNP switching output configurable as normally open or normally closed, with an IO-Link 1.1 interface for digital communication and parameterisation. The housing and grip are constructed from nickel-plated brass and stainless steel, and the sensor carries an IP67 rating for protection against dust and temporary immersion. It operates from an 18 to 30 VDC supply and is suited to installation in panels and machines requiring reliable pressure feedback.

Key specifications

• IP rating: IP67
• Operating voltage: 18 - 30 VDC
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• IO-Link: 0x0001 SSP0
