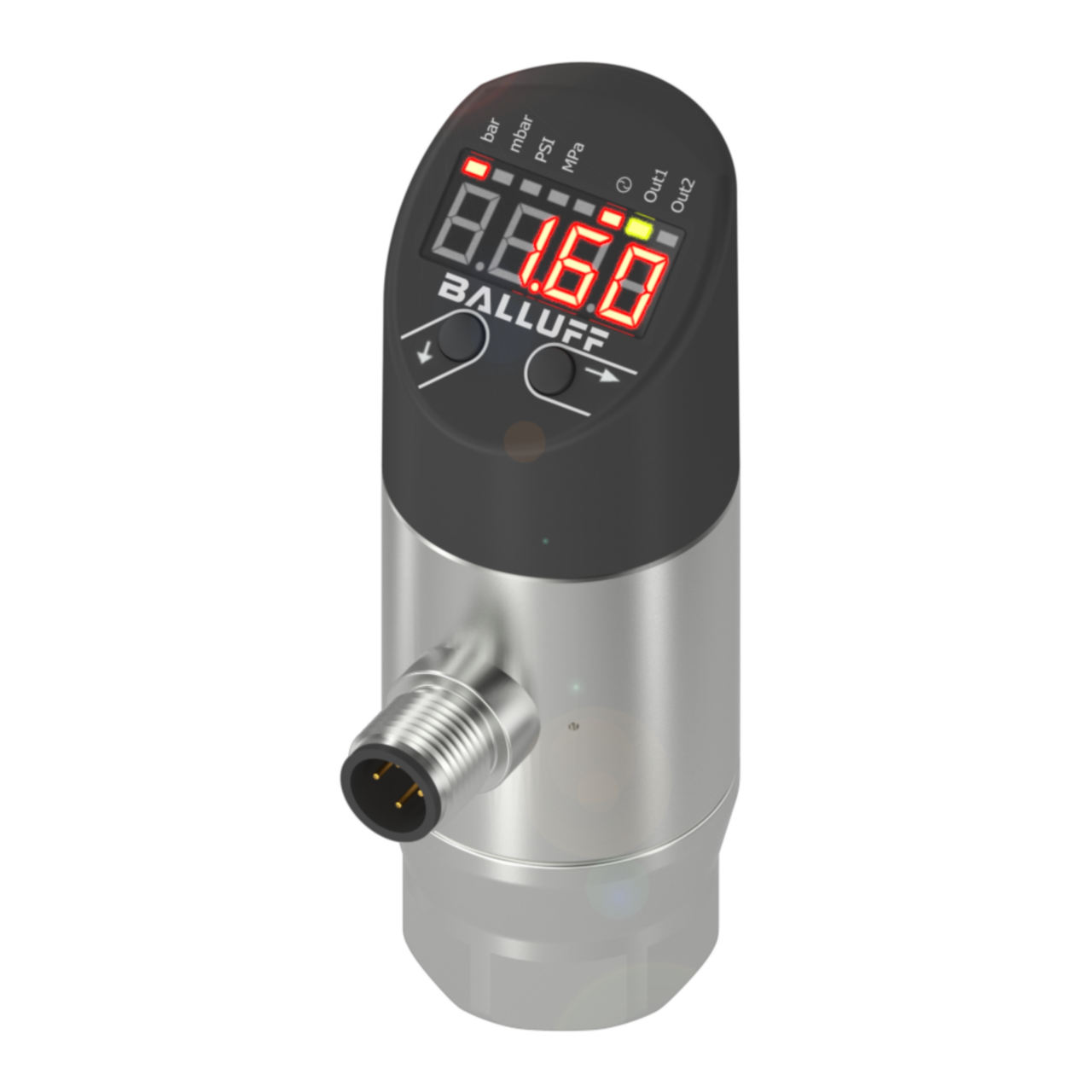

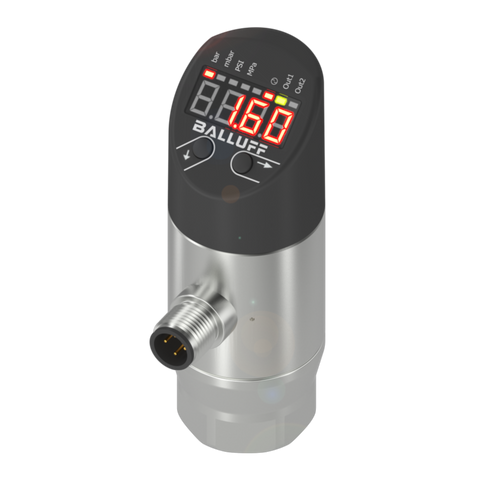

Balluff BSP B600-EV009-P00S2B-S4 Pressure sensors with display Part number BSP00YK

This is a pressure sensor with integrated display, providing two switching outputs configurable as PNP or NPN, normally open or normally closed, for pressure monitoring in automation systems. It operates from an 18-30 VDC supply and switches at up to 170 Hz, connecting via an M12x1 four-pin A-coded male connector. The housing and grip are constructed in PE with an FKM gasket, and the sensor achieves an IP67 rating when correctly threaded in, suiting installation in industrial pneumatic and hydraulic circuits where local pressure readout is required.

Key specifications

• IP rating: IP67, when threaded in
• Operating voltage: 18 - 30 VDC
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: 2x PNP/NPN NO/NC selectable
