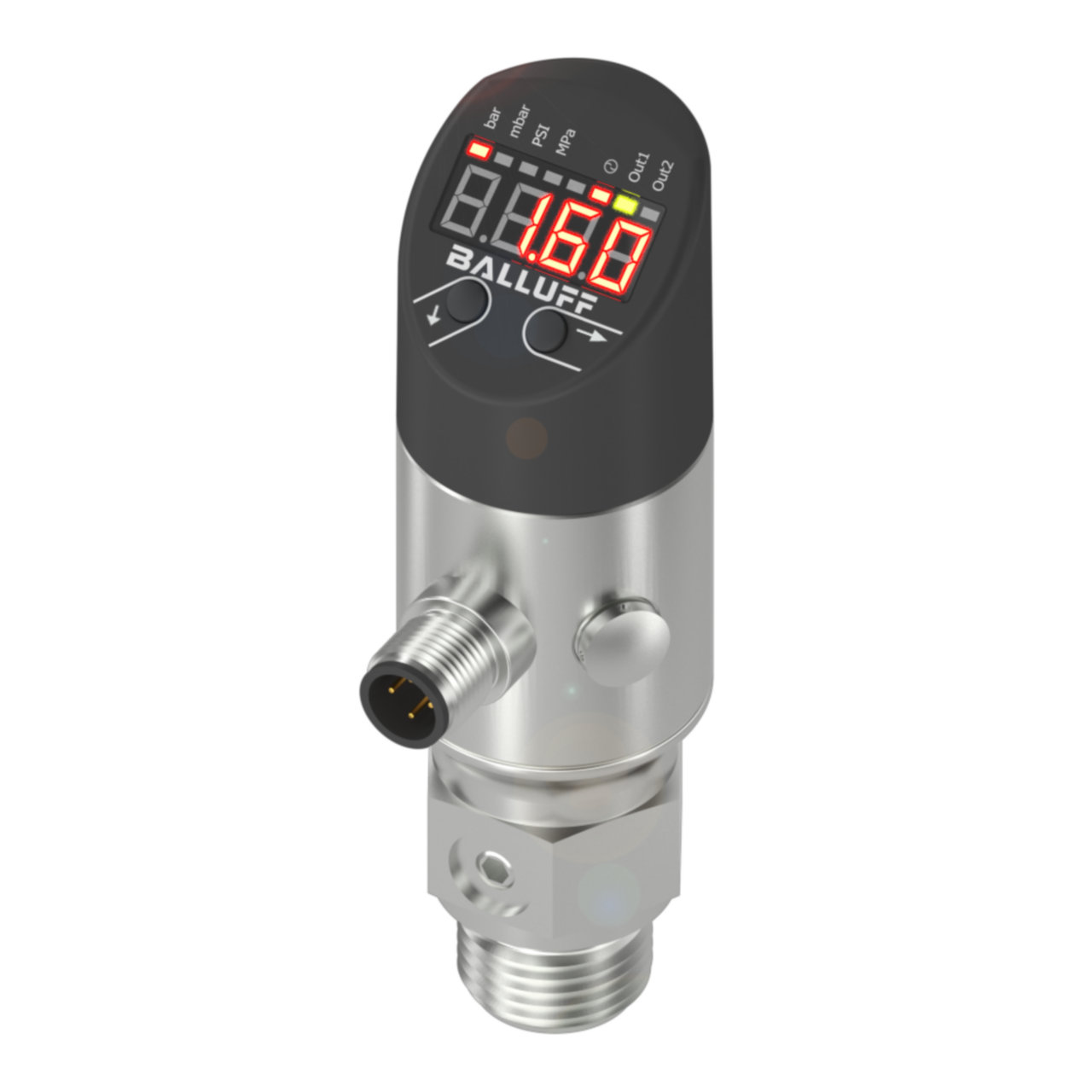

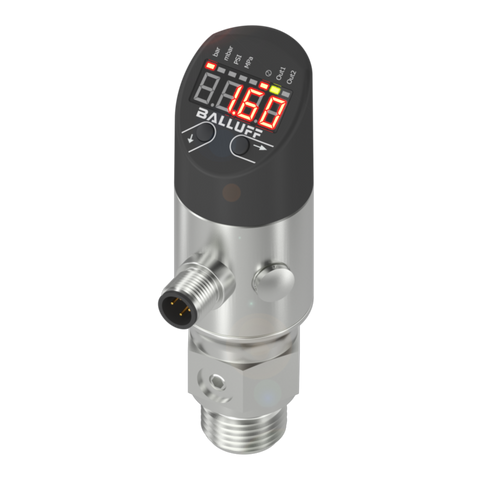

Balluff BSP B020-IV010-P00S2B-S4 Front flush pressure sensor Part number BSP00ZZ

The BSP B020-IV010-P00S2B-S4 is a front flush pressure sensor from Balluff with an M12x1 male, 4-pin, A-coded connector for panel or machine integration. It provides two switching outputs, configurable as PNP or NPN, NO or NC, and communicates via IO-Link 1.1, operating on an 18 to 30 VDC supply. With IP67 and IP69K protection when threaded in, and a PE housing with FKM gasket, it suits industrial environments requiring pressure monitoring in automation systems.

Key specifications

• IP rating: IP67, IP69K, when threaded in
• Operating voltage: 18 - 30 VDC
• Connection: M12x1-Male / 4-pin / A-coded
• Output: 2x PNP/NPN NO/NC selectable
