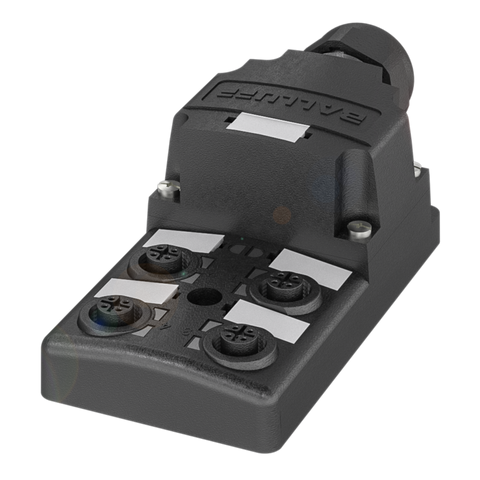

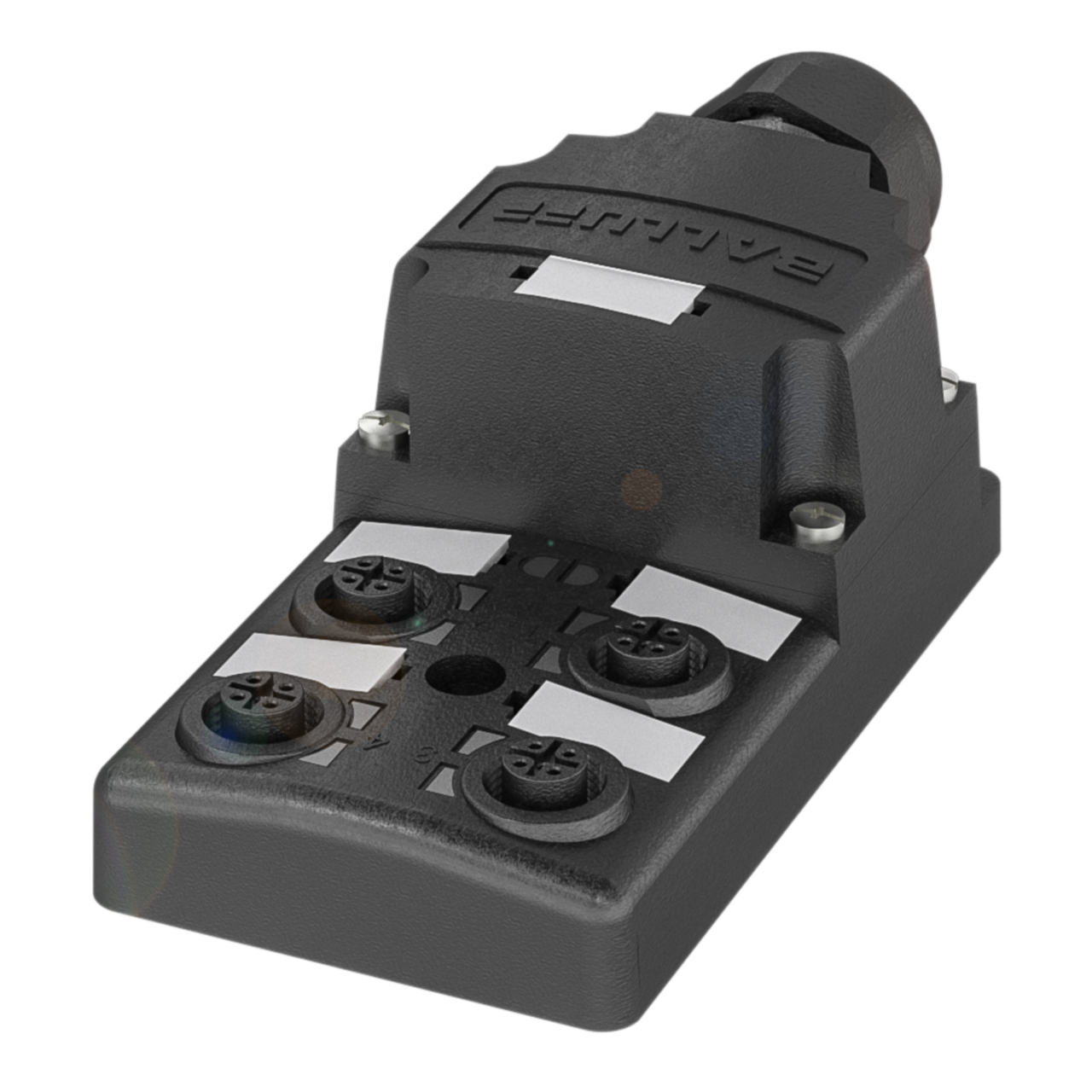

Balluff BPI 4M4A5P-2K-00-TPSG Junction block, PNP, 4A Part number BPI007K

This junction block provides four M12x1 5-pin female ports for connecting PNP sensors and actuators into a single distribution point, with a housing in PBT, brass contacts, and a PA 6.6 contact carrier. It operates at 18-30 VDC (rated 24 V) and reaches IP67 when properly threaded, making it suitable for field-level wiring in industrial automation panels and machine builds. Mounting is via three M4 fixings, with defined tightening torques for both the housing and the M12 pigtail connections.

Key specifications

• IP rating: IP67, when threaded in
• Operating voltage: 18 - 30 VDC
• Rated voltage: 24 V
• Connection: 4x / M12x1 / Female / 5-pin
• Mounting: M4 (3x)
