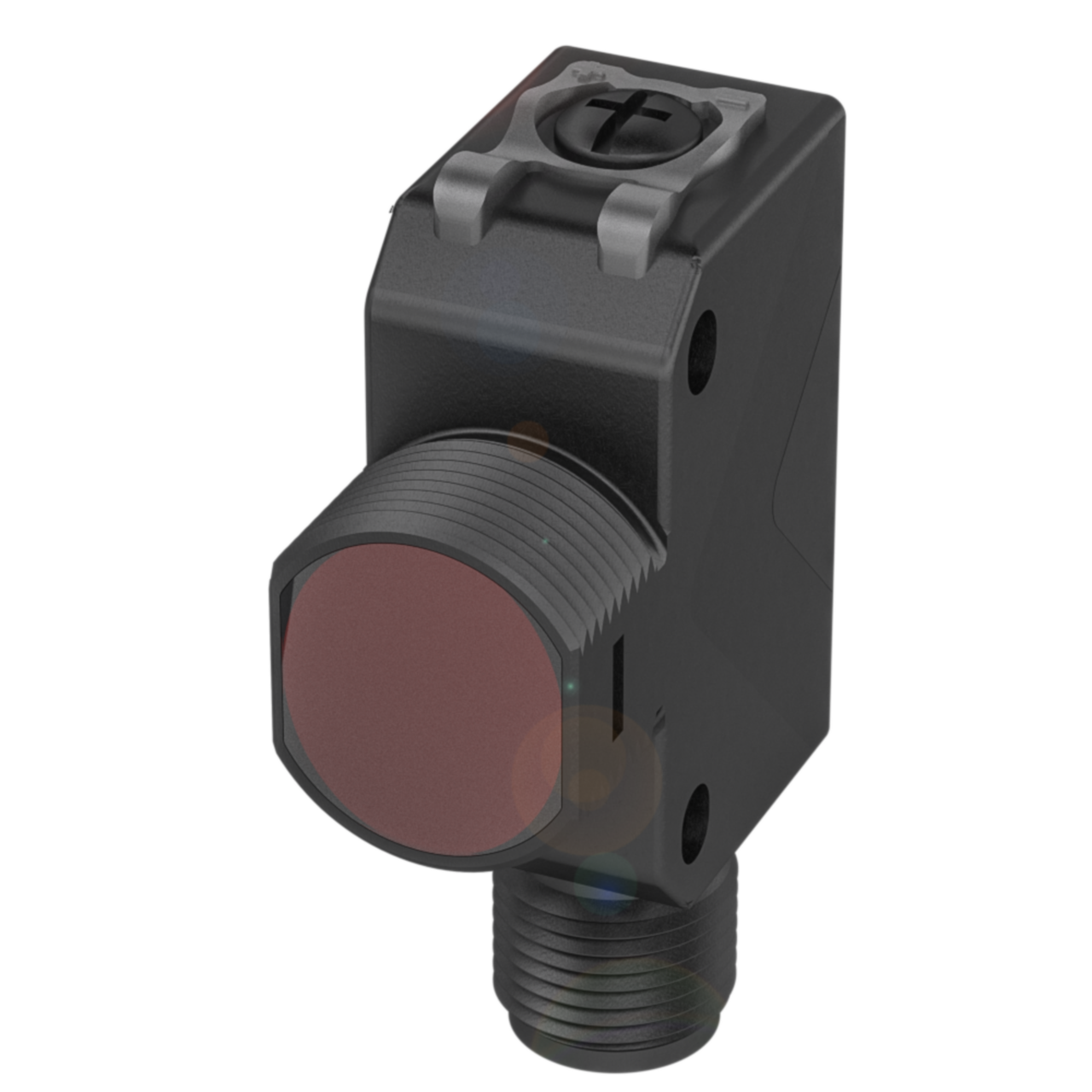

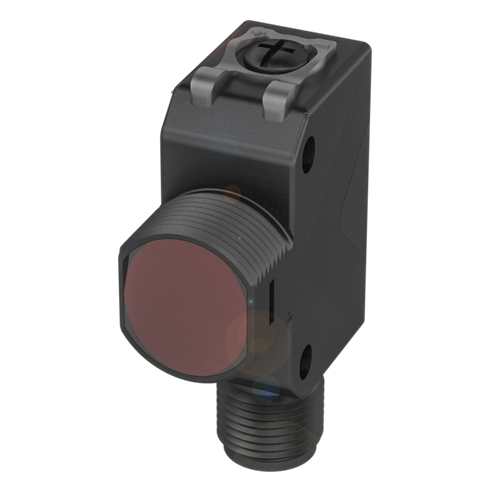

Balluff BOS R81K-NA-PR10-S4 Retroreflective sensor, NPN, NO/NC Part number BOS0293

This retroreflective sensor detects objects by sensing the interruption of a light beam reflected from a target reflector, with an NPN normally open switching output. Housed in ABS with a PMMA sensing surface and rated to IP67, it is suited to industrial environments where dust or moisture exposure is a concern. Connection is made via an M12x1 four-pin male connector, and the unit mounts using an M18x1 thread with two M3 screws, operating from a 10-30 VDC supply.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin
• Output: NPN normally open (NO)
• Mounting: Thread M18x1 Screw M3 (2x)
