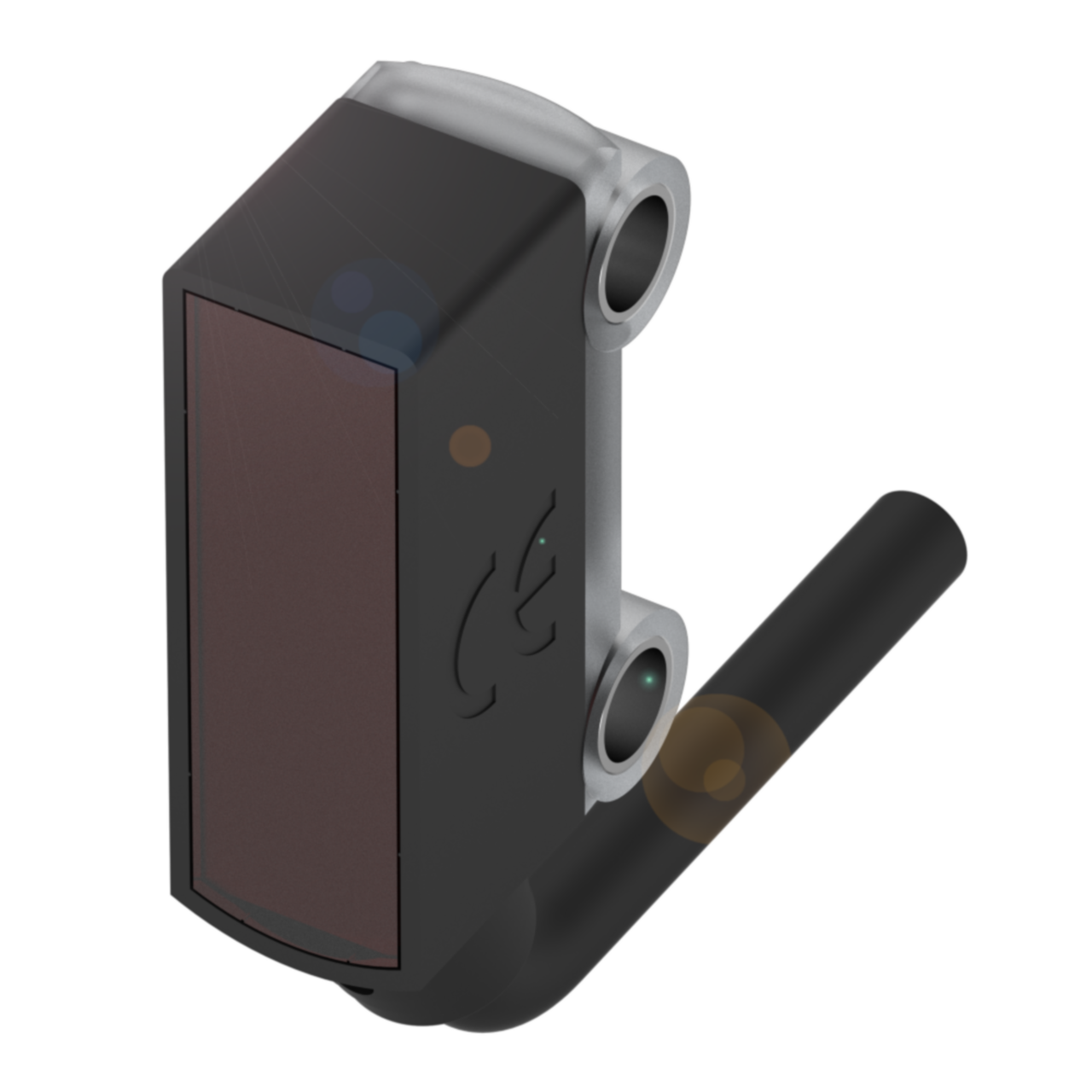

Balluff BOS R020K-PS-RF11-02 Diffuse sensor, PNP, NO Part number BOS020K

The BOS R020K-PS-RF11-02 is a diffuse photoelectric sensor with a PNP normally open output, designed to detect objects without requiring a reflector or receiver unit. It offers a rated operating distance of 30mm and operates from 10-30 VDC, switching at frequencies up to 800 Hz. With an IP67 rating and a housing of ABS, PVC and PMMA construction, it is suited to industrial environments where dust and moisture exposure occur, and mounts via an M3 screw fixing.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
• Mounting: Screw M3
