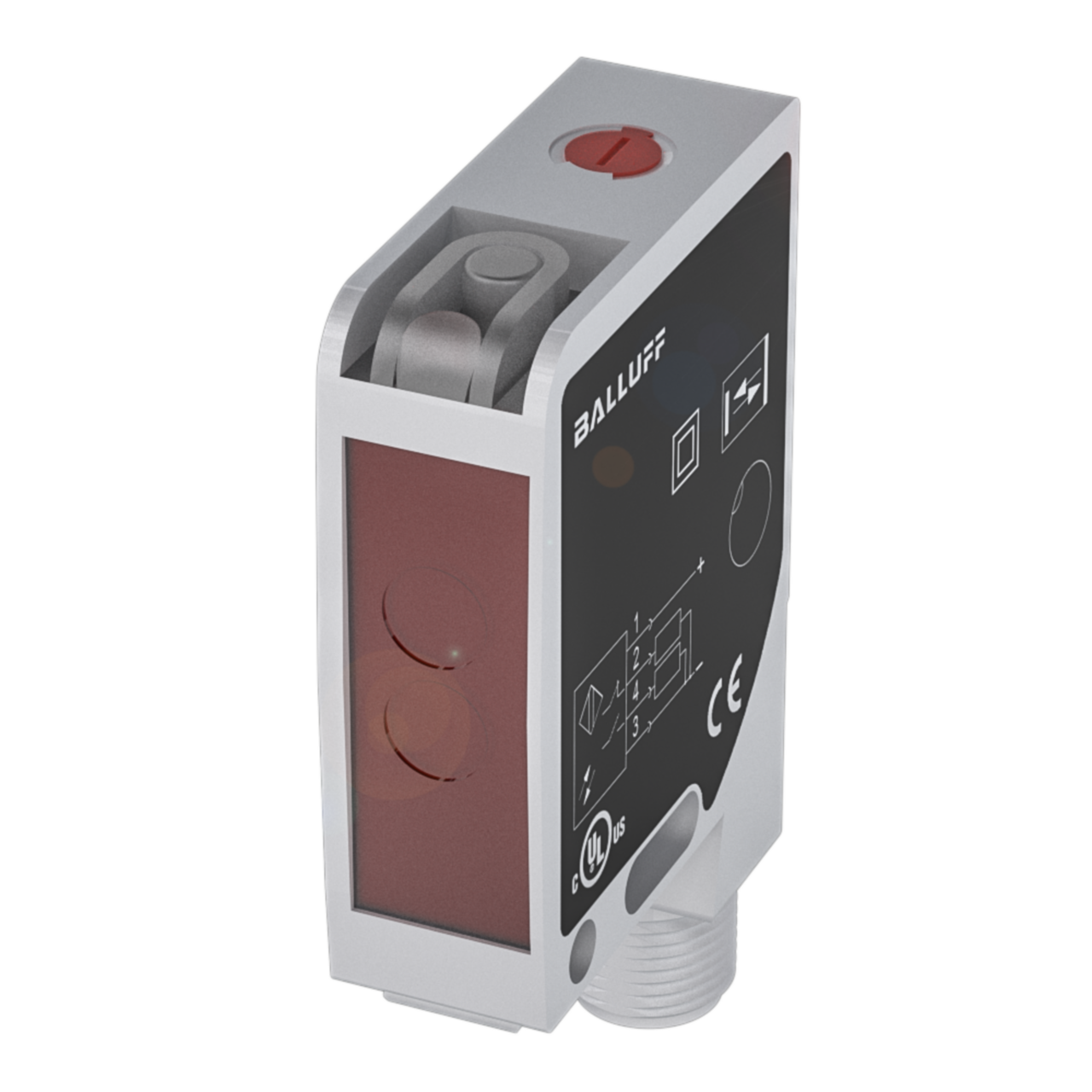

Balluff BOS 21M-PA-ID10-S4 Diffuse sensor, PNP, NO/NC Part number BOS0031

The BOS 21M-PA-ID10-S4 is a diffuse photoelectric sensor with PNP output, providing both normally open and normally closed switching via pins 4-2. It detects objects up to a rated operating distance of 2000mm and operates from a 10-30 VDC supply, with an M12x1 four-pin male connector for field wiring. Housed in powder-coated aluminium with a zinc die-cast body and a PMMA sensing surface, it carries an IP67 rating for use in demanding industrial environments, and mounts via M4 screw fixing.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin
• Output: PNP normally closed (NC) PNP normally open (NO) Pins 4-2
• Mounting: Screw M4
