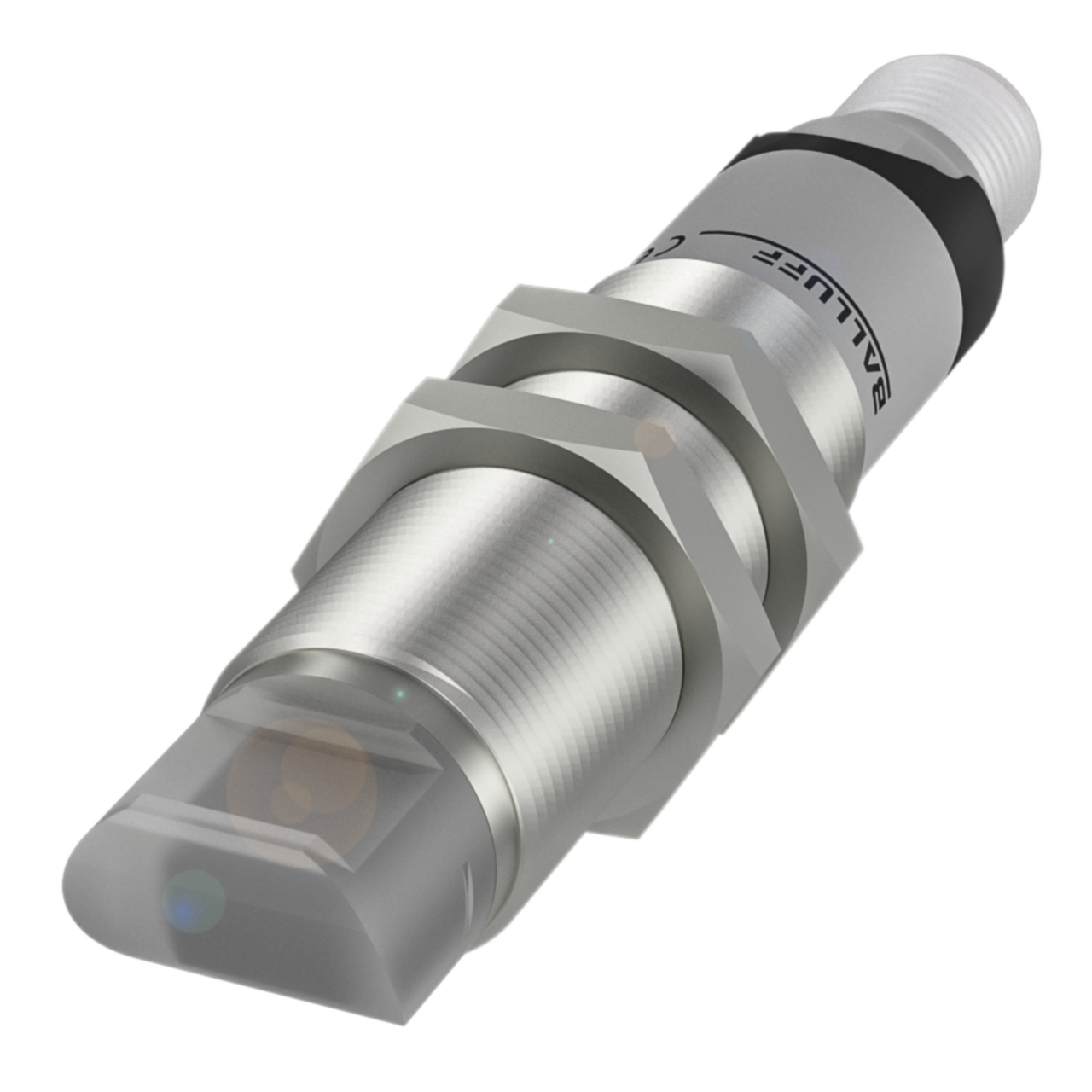

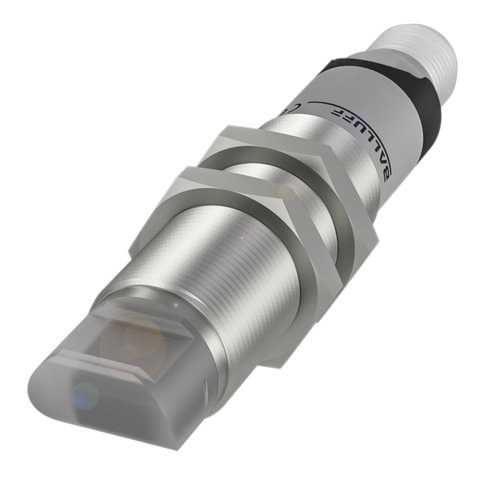

Balluff BOS 18MR-PA-LR10-S4 Retroreflective sensor, 0 - 9m range Part number BOS0146

This is a retroreflective photoelectric sensor with a rated operating distance of up to 9000mm, housed in a nickel-plated brass barrel with a PMMA sensing surface. It provides PNP normally open and normally closed switching outputs, operates from 10-30 VDC, and connects via an M12x1 four-pin male connector. The IP67-rated housing and M18x1 nut mounting suit installation in industrial environments where object or reflector detection over longer distances is required.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 75 VDC
• Connection: M12x1 / Male / 4-pin
• Output: PNP normally closed (NC) PNP normally open (NO) Pins 4-2
• Mounting: Nut M18x1
