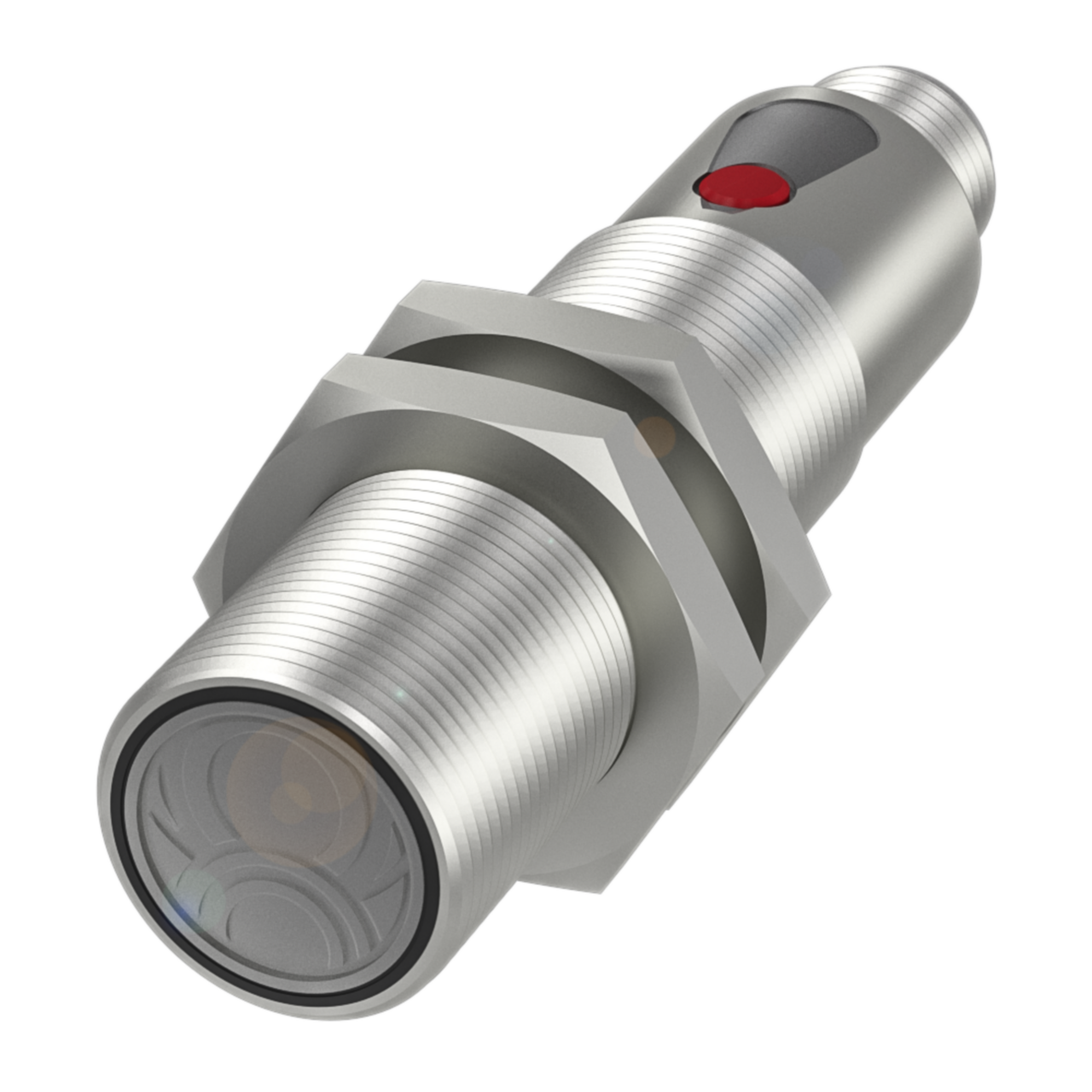

Balluff BOS 18M-PUV-RD30-S4 Diffuse sensor, PNP, NO Part number BOS01J8

This is a diffuse reflective sensor in an 18 mm brass housing with a nickel-plated grip and glass sensing surface, rated IP67 for use in demanding industrial environments. It detects objects at a rated operating distance of up to 500 mm, which is adjustable, and provides a PNP output configurable as normally open or normally closed. Operating from 10 to 30 VDC with a switching frequency of 1000 Hz, it is suited to automation applications requiring reliable object detection without direct contact.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open/normally closed (NO/NC)
