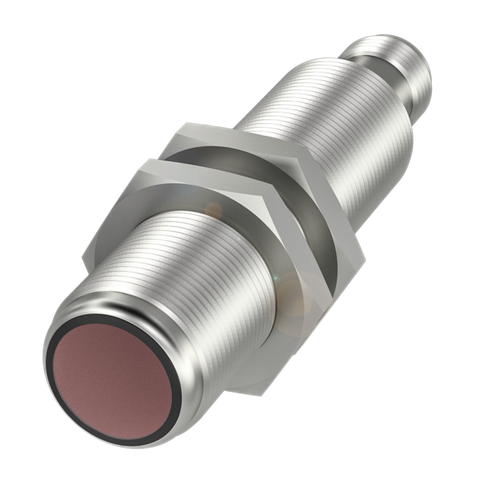

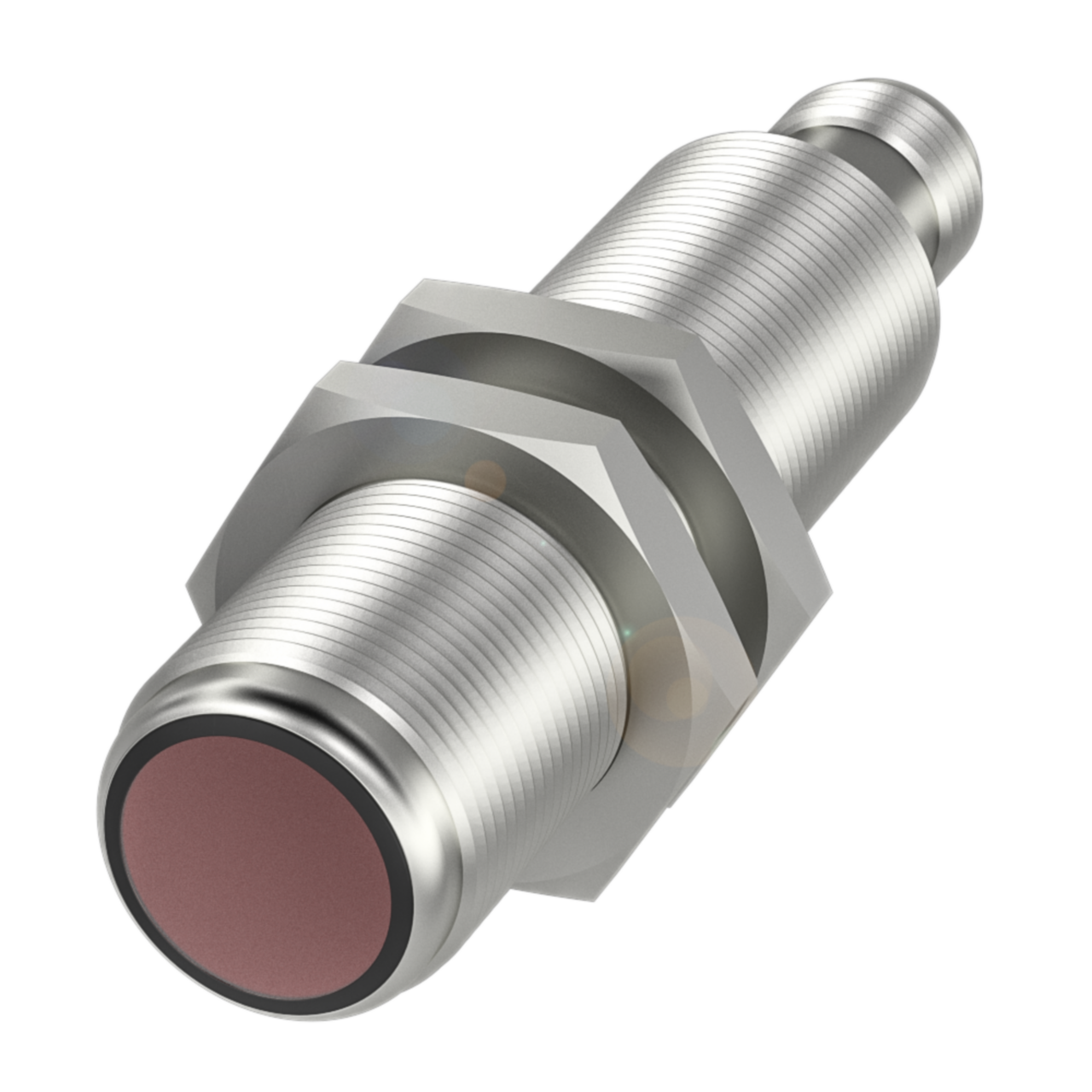

Balluff BOS 18E-PA-RD20-S4 Diffuse sensor, PNP, NO/NC
Balluff BOS 18E-PA-RD20-S4 Diffuse sensor, PNP, NO/NC

Balluff BOS 18E-PA-RD20-S4 Diffuse sensor, PNP, NO/NC

This photoelectric sensor features a stainless steel housing and operates on the principle of diffuse detection with light/dark switching capabilities. It is equipped with IP68/IP67 protection, making it ideal for use in environments with exposure to water and dust.
Vendor: Balluff
SKU: BOS01KE
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 1 left in stock
Description
Description
x

This photoelectric sensor features a stainless steel housing and operates on the principle of diffuse detection with light/dark switching capabilities. It is equipped with IP68/IP67 protection, making it ideal for use in environments with exposure to water and dust.

Specifications
Specifications
x
IP RatingIP68/IP67 / IPx9K
Compliance/CertificationsCE UKCA cULus Ecolab WEEE / IEC 60947-5-2
Material: Housing / GripStainless steel
Material: Sensing Surface / ContactsGlass
Cable Length (mm)75mm
Part Diameter (mm)18mm
Connection TypeM12x1 / Male / 4-pin
Rated Operating Distance (mm)500mm
Switching OutputPNP normally closed (NC) PNP normally open (NO) Pins 4-2
Switching Frequency (Hz)400 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24 V
Rated Operating Current100mA
Documents
Documents
x
Download Datasheet
