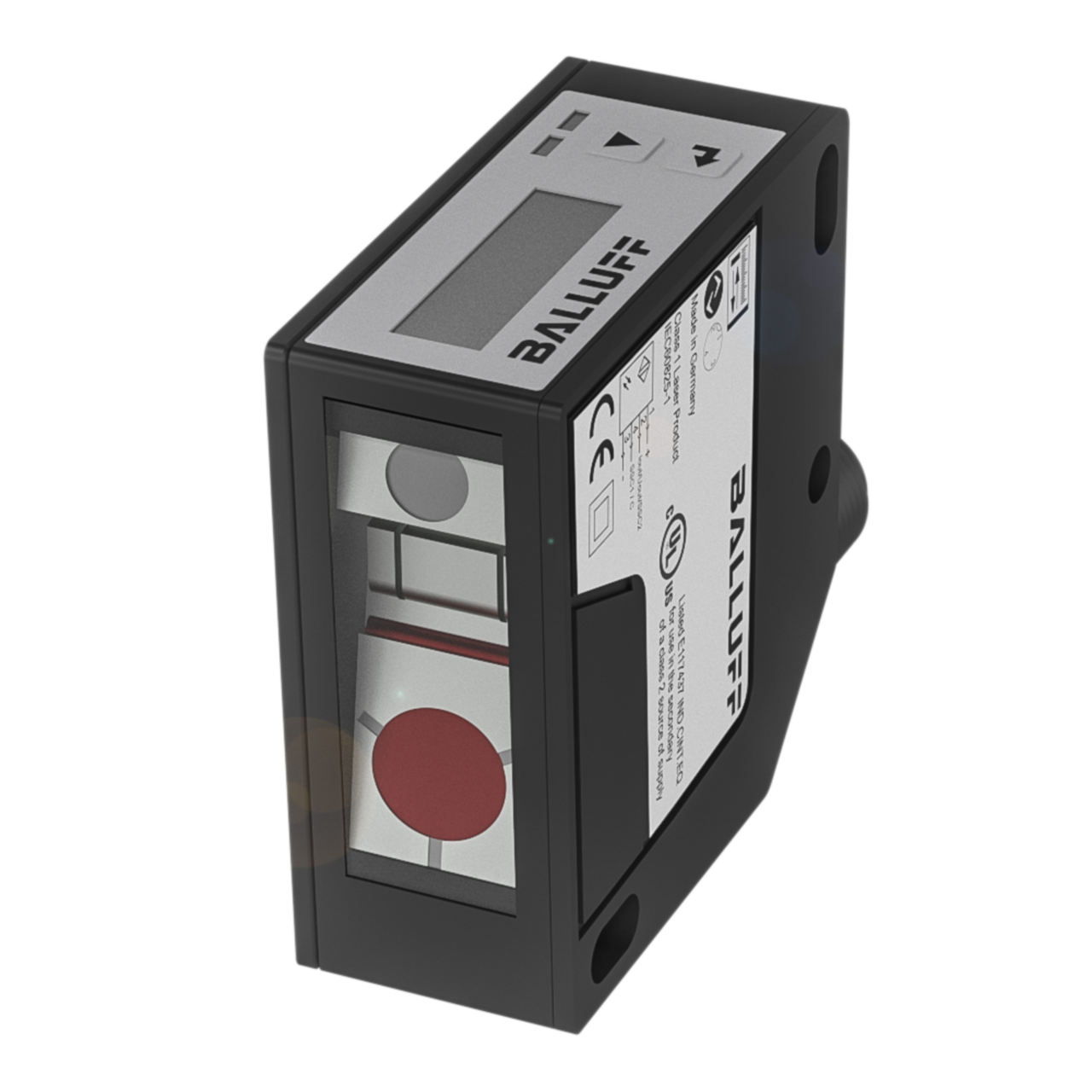

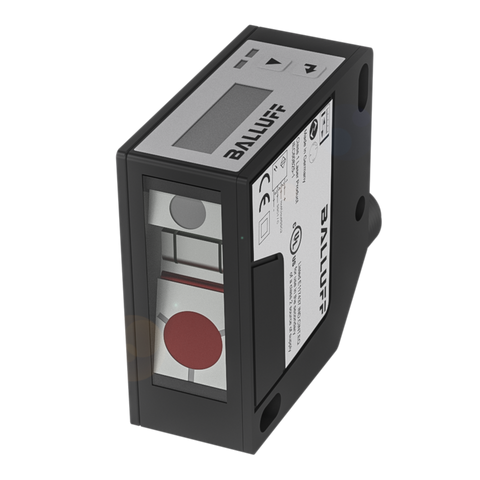

Balluff BOD 24K-LPI08-S4 Photoelectric distance sensor Part number BOD002N

This photoelectric distance sensor measures object distance up to a rated operating distance of 650 mm, adjustable to suit the application, and provides two PNP/NPN NO/NC push-pull switching outputs alongside an IO-Link 1.1 interface for parameter setting and diagnostics. Housed in plastic with a glass sensing surface and rated IP67, it connects via an M12x1 four-pin male connector and mounts using an M4 screw fixing. It operates from an 18-30 VDC supply and is suited to industrial automation panels and machines where distance sensing and digital communication are required.

Key specifications

• IP rating: IP67
• Operating voltage: 18 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin
• Output: 2x PNP/NPN NO/NC push-pull
• Mounting: Screw M4
