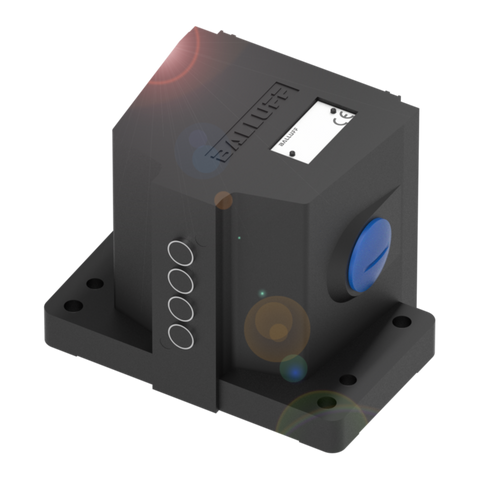

Balluff BNS 816-B04-PA-12-602-11 Inductive multiple position limit switch Part number BNS039K

The BNS 816-B04-PA-12-602-11 is an inductive multiple position limit switch with an anodised aluminium housing, rated IP67 for protection in demanding industrial environments. It offers up to four switch positions, each with a rated operating distance of 2.0mm and screw terminal connection, and provides a PNP complementary switching output at 24 VDC. It is suitable for detecting multiple positions on machinery or plant where a compact, sealed switch package is required, and complies with CE, UKCA and IEC 60947-5-2 requirements.

Key specifications

• IP rating: IP67
• Rated voltage: 24 VDC
• Output: PNP complementary
