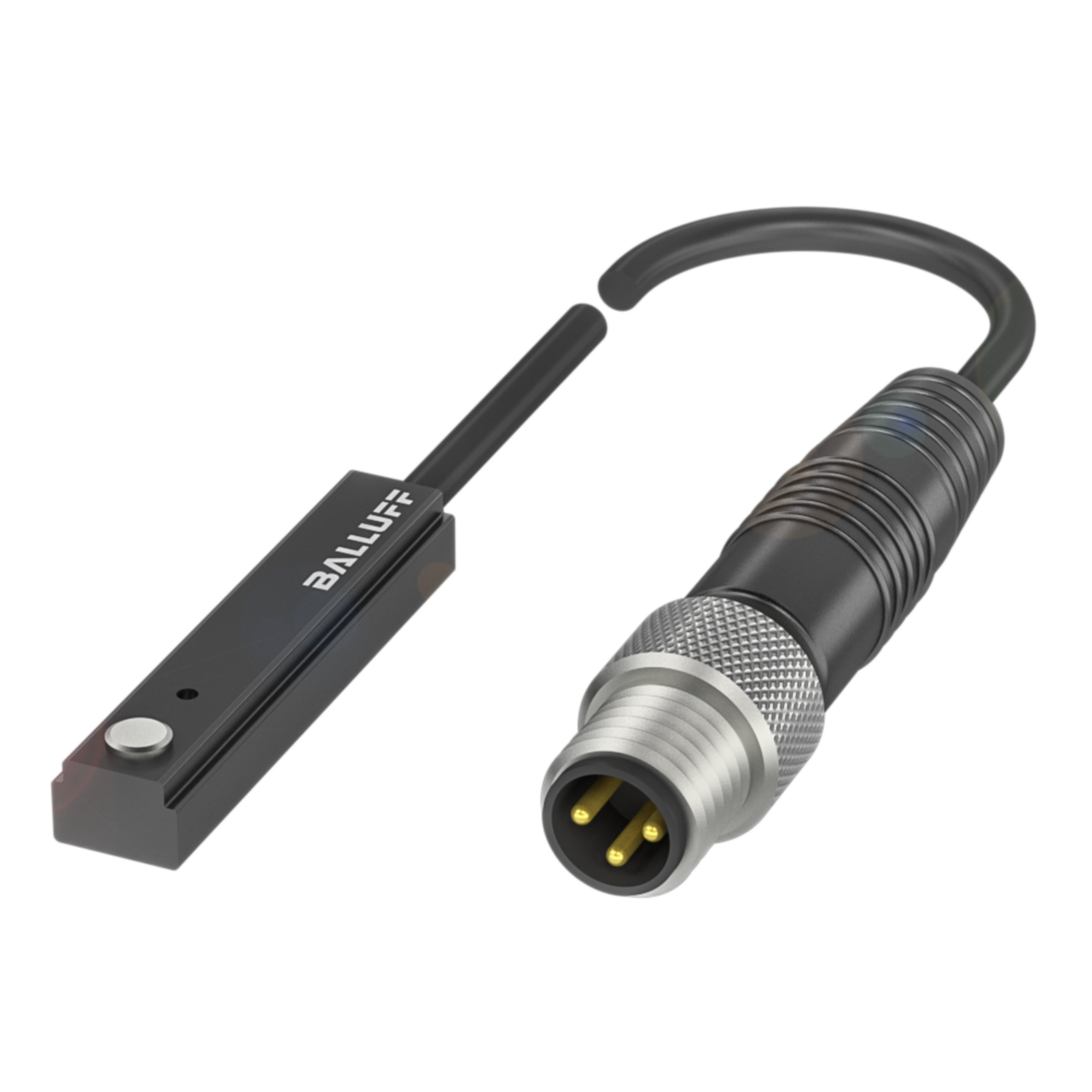

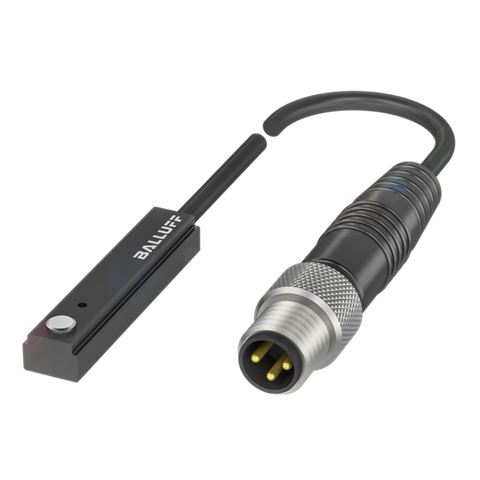

Balluff BMF 307K-PS-C-2-SA2-S49-00,3 Magnetic field sensor
Balluff BMF 307K-PS-C-2-SA2-S49-00,3 Magnetic field sensor

Balluff BMF 307K-PS-C-2-SA2-S49-00,3 Magnetic field sensor Part number BMF0072

The Balluff BMF 307K-PS-C-2-SA2-S49-00,3 is a magnetic field sensor. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.Key specifications IP rating: IP67 Operating voltage: 10 - 30 VDC Rated voltage: 24V Output: PNP normally open (NO)
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

The Balluff BMF 307K-PS-C-2-SA2-S49-00,3 is a magnetic field sensor. It operates from 10 - 30 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 30 VDC
  • Rated voltage: 24V
  • Output: PNP normally open (NO)
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationscULus CE UKCA WEEE / IEC 60947-5-2
Material: Housing / GripLCP
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsLCP
Cable Diameter (mm)2.9mm
Tightening Torque0.1 Nm
Switching OutputPNP normally open (NO)
Switching Frequency (Hz)10000 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 30 VDC
Rated Voltage24V
Rated Operating Current200mA
Documents
Documents
x
Download Datasheet
