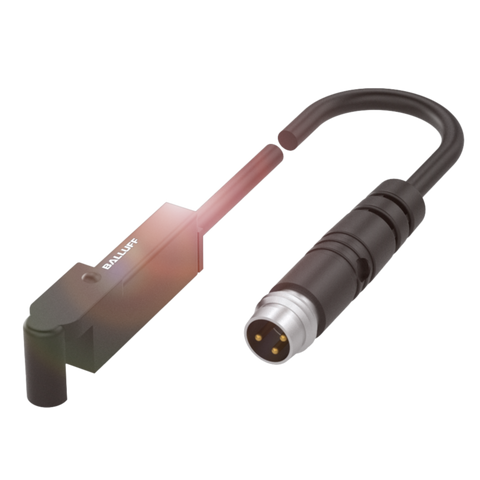

Balluff BMF 305K-R-PS-F-3-S49-00,2 Magnetic field sensor Part number BMF0063

This is a magnetic field sensor designed for mounting on pneumatic cylinders to detect piston position via the magnetic field of the piston magnet. It uses a polarized normally open reed switch output and connects through an M8x1, 3-pin male connector, operating from a 10...30 VDC supply. The LCP housing and IP65 rating suit it to use in industrial environments across an ambient temperature range of -20...70°C, typically within automation panels and machine builds.

Key specifications

• IP rating: IP65
• Operating voltage: 10...30 VDC
• Connection: M8x1-Male, 3-pin
• Output: Reed switch, polarized normally open (NO)
• Operating temperature: -20...70 °C
• Dimensions: 33.5 x 5 x 10.5 mm
