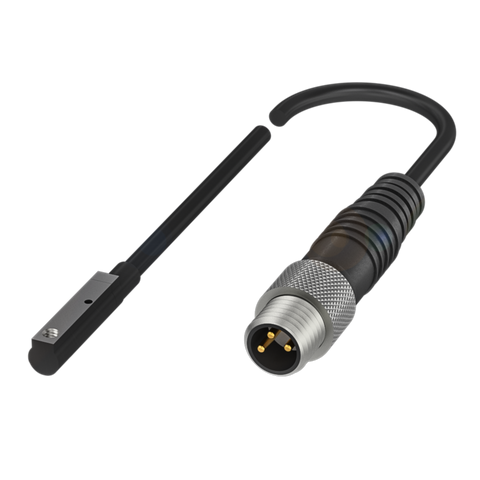

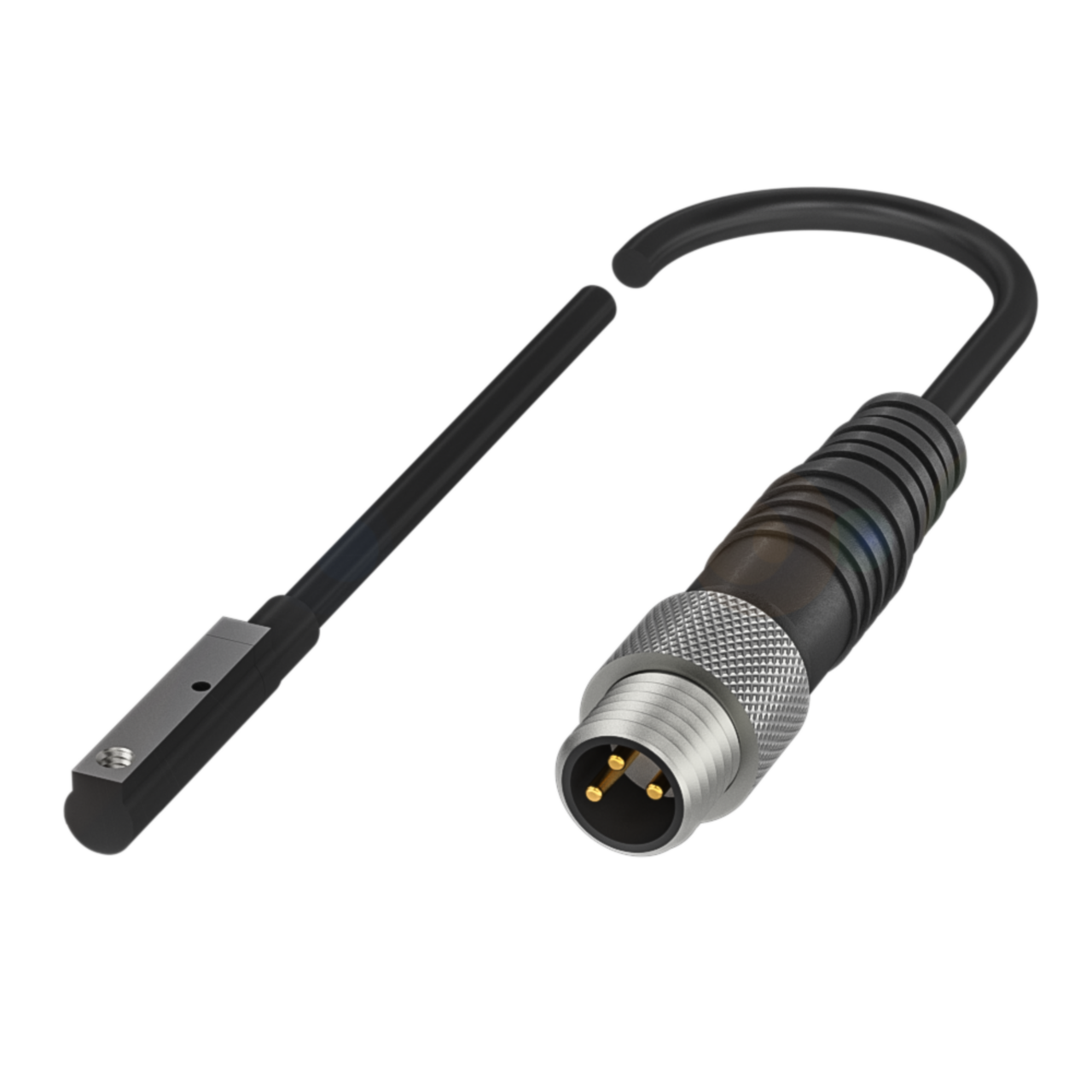

xThe BMF 214K-PS-C-2A-SA2-S49-00,5 is a magnetic field sensor with a PNP normally open switching output, designed for detecting piston position on pneumatic cylinders fitted with magnetic pistons. Housed in PA 12 with a PUR cable jacket and rated IP67, it is suited to industrial environments where dust and moisture exposure occur. It operates from 10 to 30 VDC and connects via an M8x1 three-pin male connector, with a supplied cable length of 500mm, making it compatible with standard field wiring on automation panels and machine builds.
Key specifications
- IP rating: IP67
- Operating voltage: 10 - 30 VDC
- Rated voltage: 24 V
- Connection: M8x1 / Male / 3-pin
- Output: PNP normally open (NO)
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE UKCA cULus WEEE / IEC 60947-5-2 |
| Material: Housing / Grip | PA 12 |
| Material: Jacket / Cover Nut | PUR |
| Part Depth (mm) | 2.9mm |
| Part Width (mm) | 16.8mm |
| Cable Length (mm) | 500mm |
| Part Height (mm) | 4.5mm |
| Cable Diameter (mm) | 2.5mm |
| Connection Type | M8x1 / Male / 3-pin |
| Tightening Torque | 0.03 Nm |
| Switching Output | PNP normally open (NO) |
| Switching Frequency (Hz) | 7000 Hz |
| Rated Insulation Voltage | 75 VDC |
| Operating Voltage | 10 - 30 VDC |
| Rated Voltage | 24 V |
| Rated Operating Current | 100 mA |
