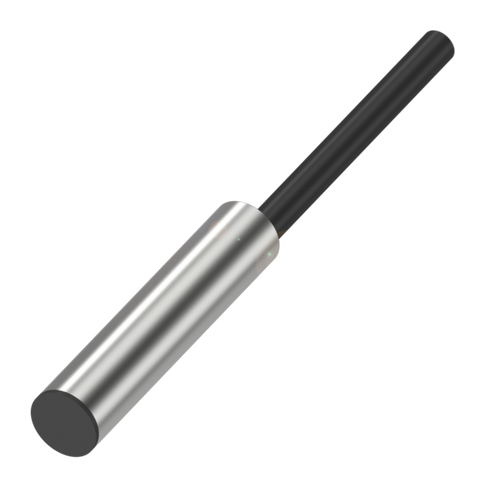

Balluff BMF 07M-NS-C-2-KPU-02 Tubular magnetic field sensor Part number BMF0008

The BMF 07M-NS-C-2-KPU-02 is a tubular magnetic field sensor with a D6.5 housing in nickel-plated brass, designed to detect the magnetic piston position within pneumatic cylinders. It provides an NPN normally open switching output, operates from 10 to 30 VDC, and is rated IP67 for use in harsh industrial environments. The compact 30.5mm length and 6.5mm diameter suit installation in cylinder mounting grooves on automated machinery and panels.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: NPN normally open (NO)
