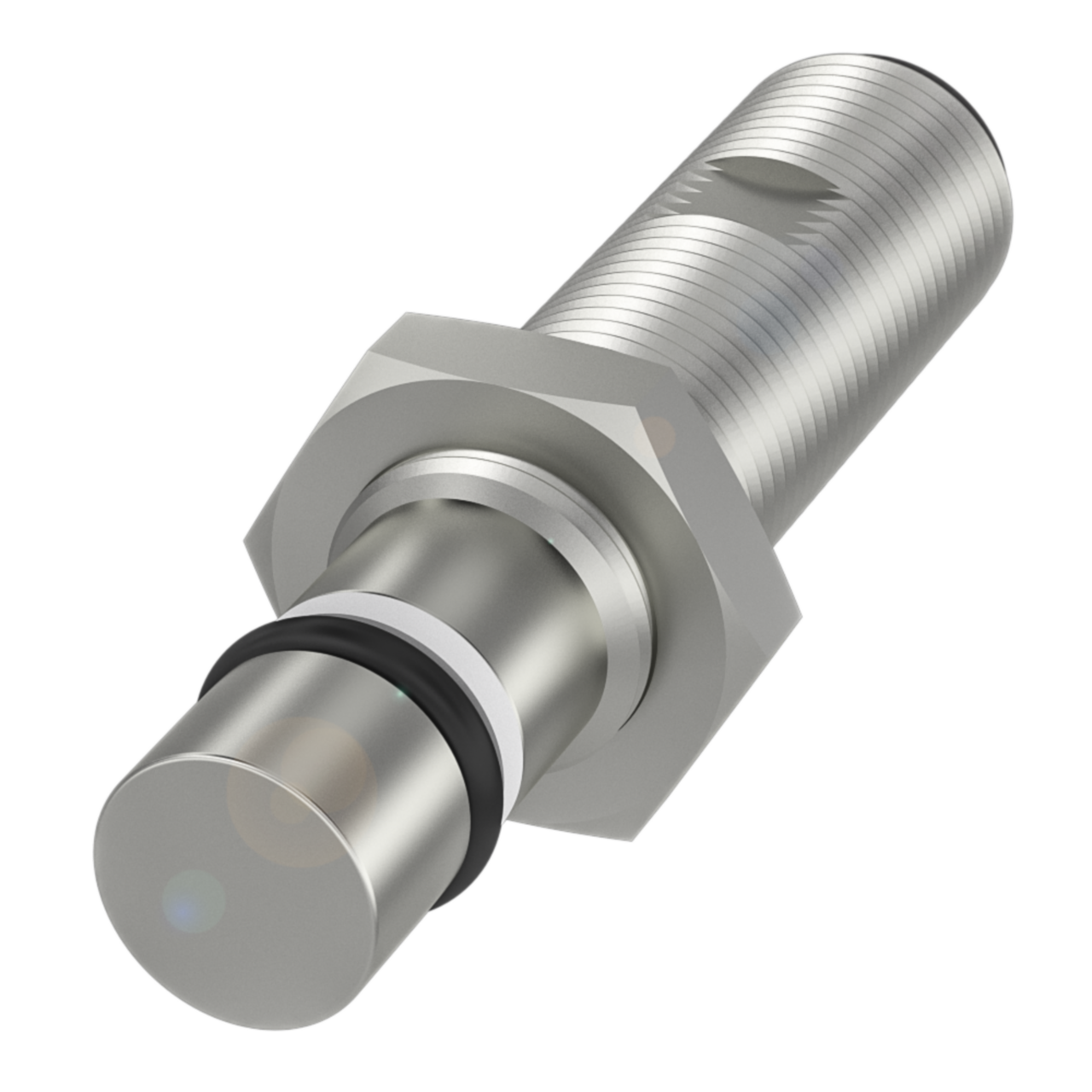

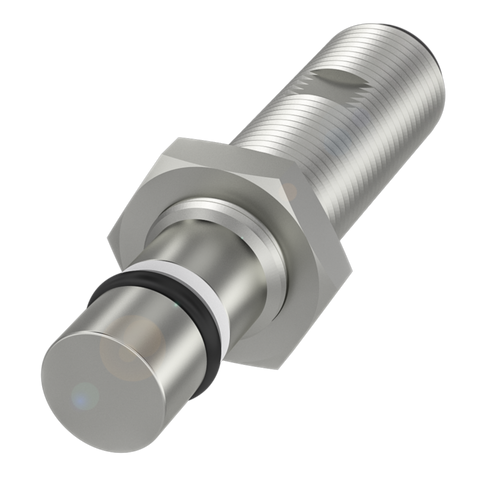

Balluff BHS B249V-PSD25-S04-003 Pressure-rated sensor, PNP Part number BHS0060

The BHS B249V-PSD25-S04-003 is a pressure-rated inductive sensor with a PNP normally open output, housed in stainless steel with a ceramic sensing surface for use in demanding environments. It features an M12x1 housing with a 4-pin A-coded male connector, is designed for flush mounting, and carries an IP68 rating. Operating from 10-30 VDC with a rated operating current of 200 mA and a switching frequency of 400 Hz, it suits automation applications where the sensor face may be exposed to pressure or washdown conditions.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
