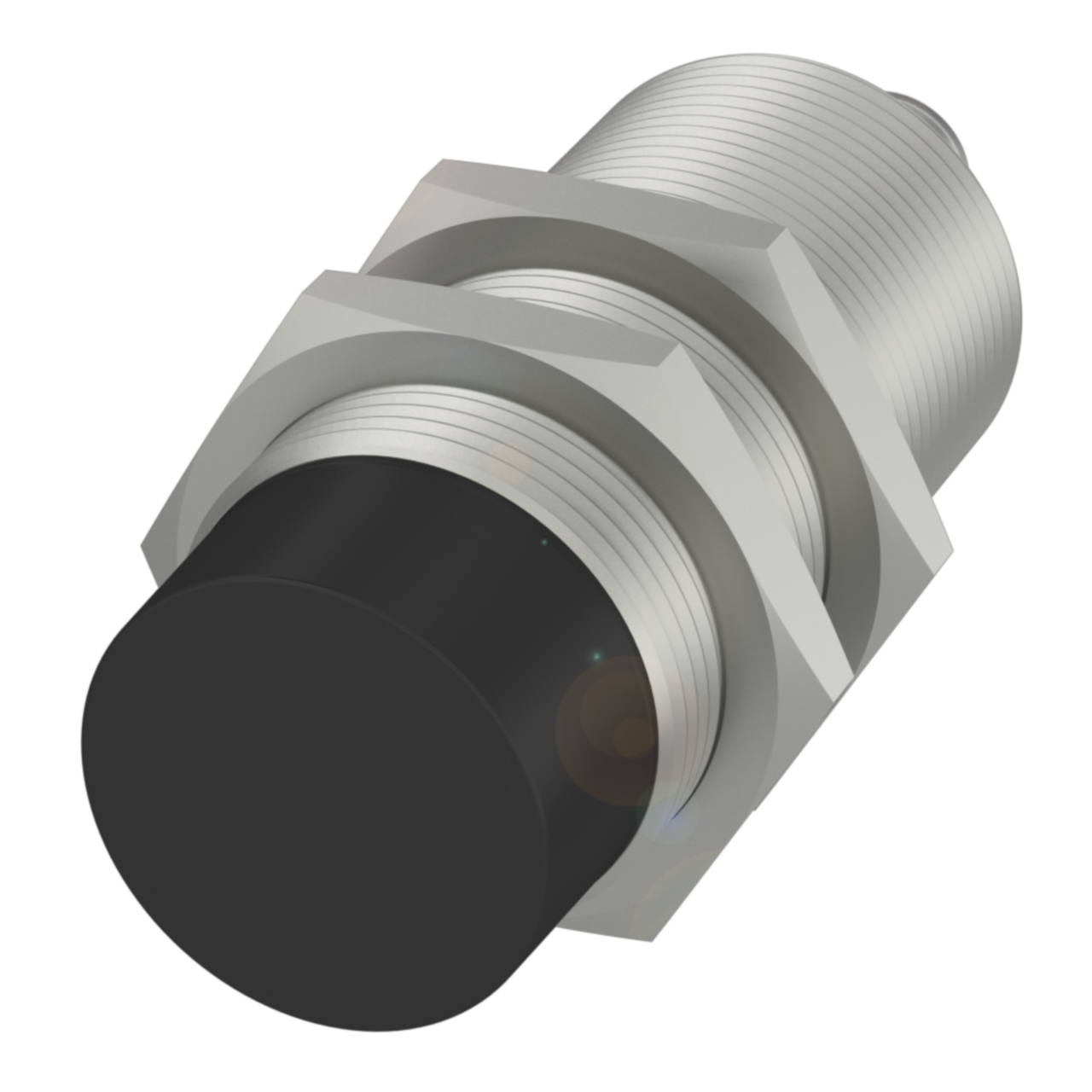

Balluff BES M30MM-PSC30F-S04G Inductive sensor, PNP, NO Part number BES03RE

The BES M30MM-PSC30F-S04G is an inductive proximity sensor with a PNP normally open output, housed in an M30x1.5 brass body with nickel-free coating and a PBT sensing face. It detects metal targets at a rated operating distance of 30 mm and is intended for non-flush mounting, requiring clearance around the sensing face. Connection is via an M12x1 4-pin A-coded male connector, and the sensor operates from 10-30 VDC with an IP67 rating, suiting it to industrial automation panels and machinery where exposure to dust and moisture is expected.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Non-flush mounting
