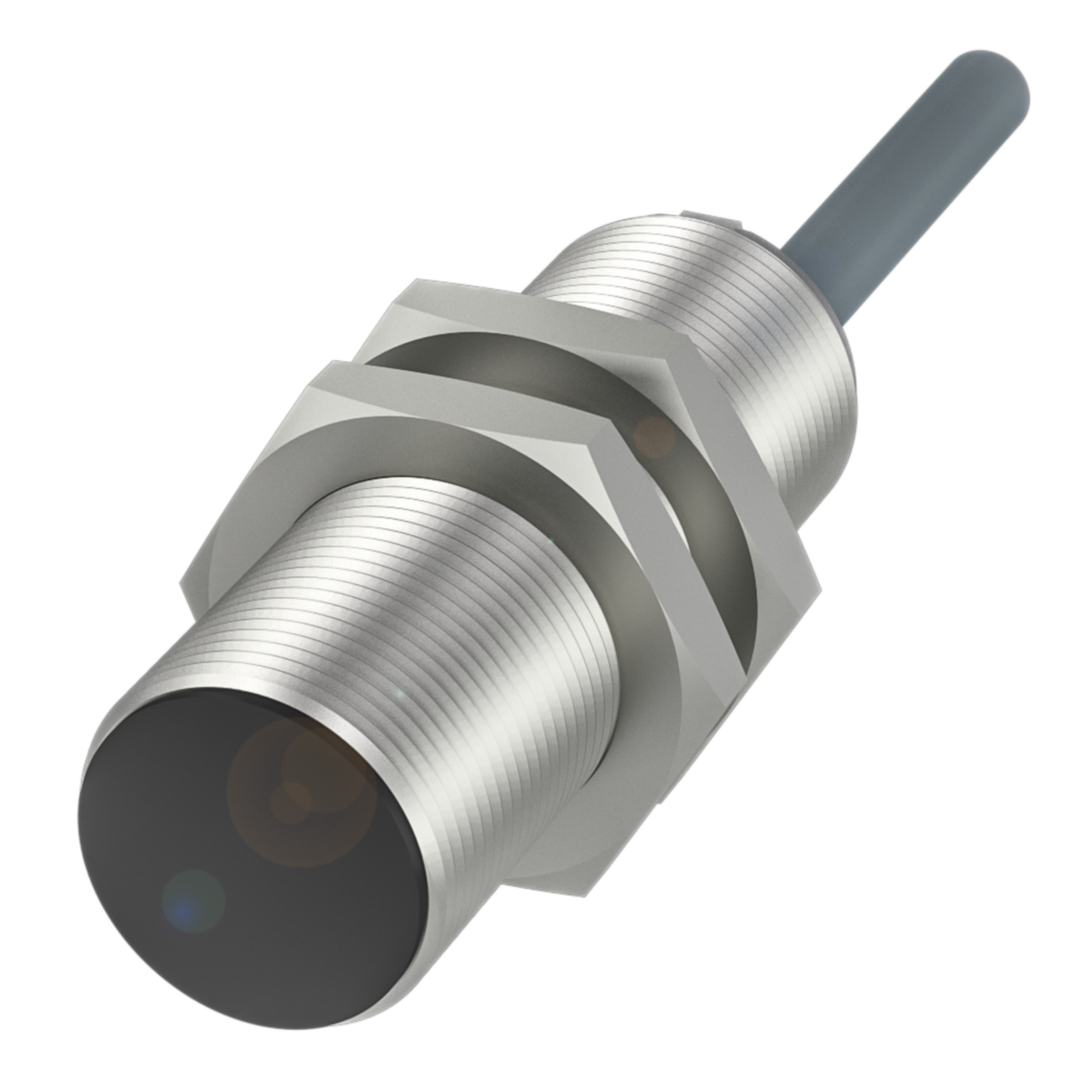

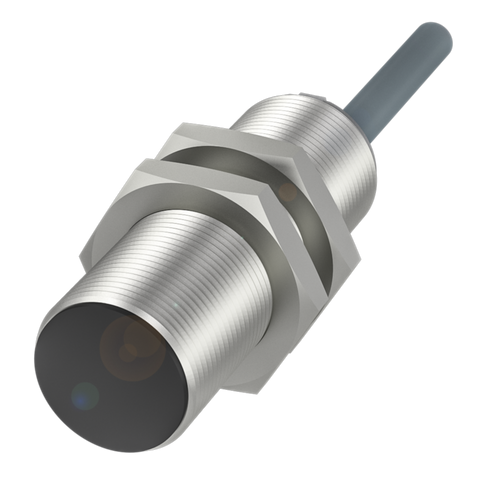

Balluff BES M18MI-PSC50B-BV03 Inductive sensor, PNP, NO Part number BES0083

The BES M18MI-PSC50B-BV03 is an 18 mm inductive proximity sensor with a PNP normally open output, providing a rated operating distance of 5 mm. It operates from 10–30 V (24 V rated), switches at up to 2000 Hz, and is terminated with a 3 m PVC cable. Housed in brass with a nickel-free coating and PBT sensing face, it carries an IP68 rating, suiting use in wet or washdown industrial environments where reliable non-contact object detection is required on panels or machines.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 V
• Rated voltage: 24 V
• Output: PNP normally open (NO)
